M20-9741342
ActiveHarwin Inc.

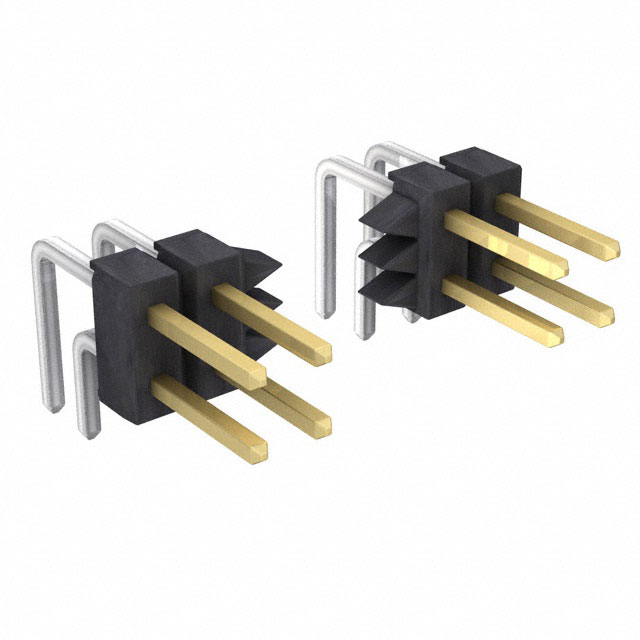

13+13 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M20-9741342
ActiveHarwin Inc.
13+13 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20-9741342 |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.228 in |
| Contact Length - Mating | 5.8 mm |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
M20-974 Series
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Material Flammability Rating | Contact Material | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Contact Type | Contact Shape | Number of Positions | Termination | Style | Fastening Type | Insulation Material | Number of Positions Loaded | Shrouding | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Number of Rows | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | Gold | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 8 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 72 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black | |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 6 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black | |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | Gold | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 24 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | Gold | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 26 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 40 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black | |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 20 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black | |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | Gold | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black | |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 34 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black | |
Harwin Inc. | Through Hole Right Angle | -40 °C | 105 ░C | Gold | UL94 V-0 | Brass | 0.228 in | 5.8 mm | 3 A | Male Pin | Square | 12 | Solder | Board to Board Cable | Push-Pull | Nylon 6T Polyamide (PA6T) | All | Unshrouded | 0.1 in | 2.54 mm | 0.118 in | 3 mm | Tin | 2 | Cuttable Header | 2.54 mm | 0.1 in | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-974 Series
Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
