PRPC011SGAN-M71RC
ActiveSullins Connector Solutions

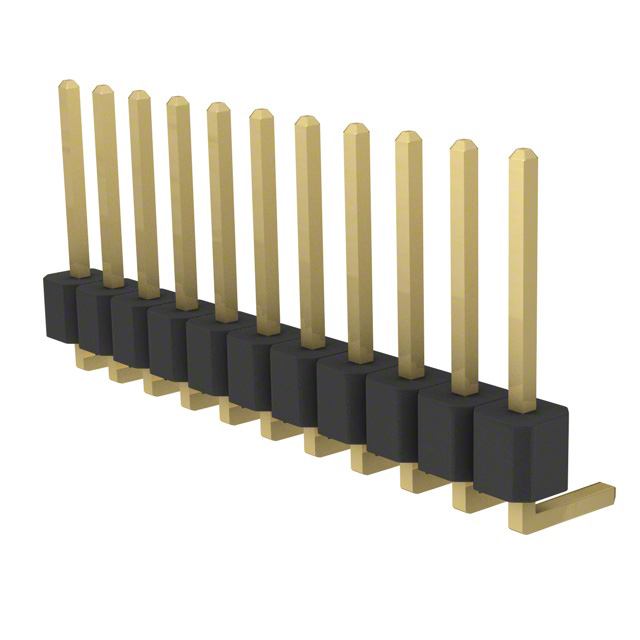

CONN HEADER R/A 11POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRPC011SGAN-M71RC
ActiveSullins Connector Solutions
CONN HEADER R/A 11POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC011SGAN-M71RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC011 Series
| Part | Number of Rows | Contact Material | Material Flammability Rating | Shrouding | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Number of Positions Loaded | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Insulation Height [z] | Insulation Height [z] | Fastening Type | Insulation Material | Termination | Overall Contact Length | Overall Contact Length | Contact Finish - Mating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Insulation Color | Style | Connector Type | Contact Finish Thickness - Mating | Contact Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Overall Contact Length | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 2 | Brass | UL94 V-0 | Unshrouded | Gold | 2.54 mm | 0.1 in | 3 A | All | 22 positions | 0.12 in | 3.05 mm | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | 13.63 mm | 0.537 " | Gold | Through Hole | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | ||||||
Sullins Connector Solutions | 1 | Brass | UL94 V-0 | Unshrouded | Gold | 3 A | All | 11 | 0.12 in | 3.05 mm | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | 13.63 mm | 0.537 " | Gold | Through Hole | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | ||||||||
Sullins Connector Solutions | 1 | Brass | UL94 V-0 | Unshrouded | Gold | 3 A | All | 11 | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | Gold | Through Hole Right Angle | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.23 in | 0.1 in | 2.54 mm | 0.22 in | 5.58 mm | 5.84 mm | ||||||||||
Sullins Connector Solutions | 1 | Brass | UL94 V-0 | Unshrouded | Gold | 3 A | All | 11 | 0.12 in | 3.05 mm | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | Gold | Through Hole Right Angle | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | ||||||||||
Sullins Connector Solutions | 1 | Brass | UL94 V-0 | Unshrouded | Gold | 3 A | All | 11 | 0.42 in | 10.67 mm | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | 19.01 mm | Gold | Through Hole | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.23 in | 0.1 in | 2.54 mm | 5.84 mm | 0.748 in | ||||||||
Sullins Connector Solutions | 2 | Brass | UL94 V-0 | Unshrouded | Gold | 2.54 mm | 0.1 in | 3 A | All | 22 positions | 0.12 in | 3.05 mm | Square | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | Gold | Through Hole Right Angle | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.23 in | 0.1 in | 2.54 mm | 5.84 mm | 0.197 in | 5 mm | ||||||||
Sullins Connector Solutions | 1 | Brass | UL94 V-0 | Unshrouded | Gold | 3 A | All | 11 | 0.12 in | 3.05 mm | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | Gold | Through Hole Right Angle | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.23 in | 0.1 in | 2.54 mm | 5.84 mm | ||||||||||
Sullins Connector Solutions | 1 | Brass | UL94 V-0 | Unshrouded | Gold | 3 A | All | 11 | 0.32 in | 8.13 mm | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | Gold | Through Hole Right Angle | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.23 in | 0.1 in | 2.54 mm | 5.84 mm | ||||||||||
Sullins Connector Solutions | 2 | Brass | UL94 V-0 | Unshrouded | Gold | 2.54 mm | 0.1 in | 3 A | All | 22 positions | Square | 0.098 in | 2.5 mm | Push-Pull | Polybutylene Terephthalate (PBT) | Solder | 14.18 mm | Gold | Through Hole | -40 °C | 105 ░C | Flash | Black | Board to Board Cable | Breakaway Header | Flash | Male Pin | 0.23 in | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | 5.84 mm | 0.558 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| 5000 | $ 0.28 | |||
| 10000 | $ 0.28 | |||
Description
General part information
PRPC011 Series
Connector Header Through Hole, Right Angle 11 position 0.100" (2.54mm)
