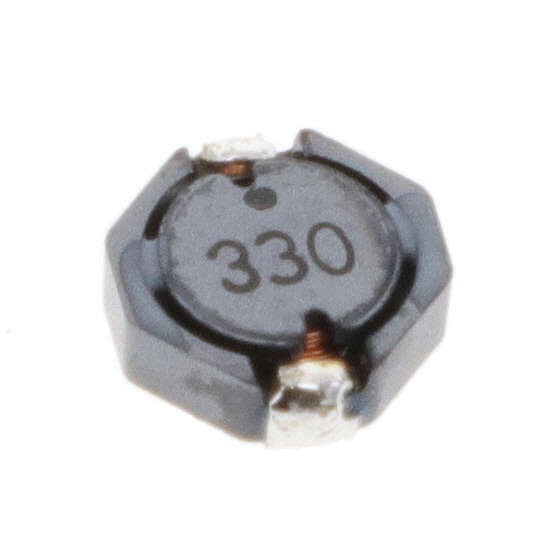

#A914BYW-330M=P3
ActiveMurata Power Solutions Inc.
FIXED IND 33UH 480MA 455MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
#A914BYW-330M=P3
ActiveMurata Power Solutions Inc.
FIXED IND 33UH 480MA 455MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | #A914BYW-330M=P3 |
|---|---|
| Current - Saturation (Isat) | 440 mA |
| Current Rating (Amps) | 480 mA |
| DC Resistance (DCR) [Max] | 455 mOhm |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.69 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.64 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.50 | |||
Description
General part information
A914BYW Series
33 µH Shielded Inductor 480 mA 455mOhm Max Nonstandard
