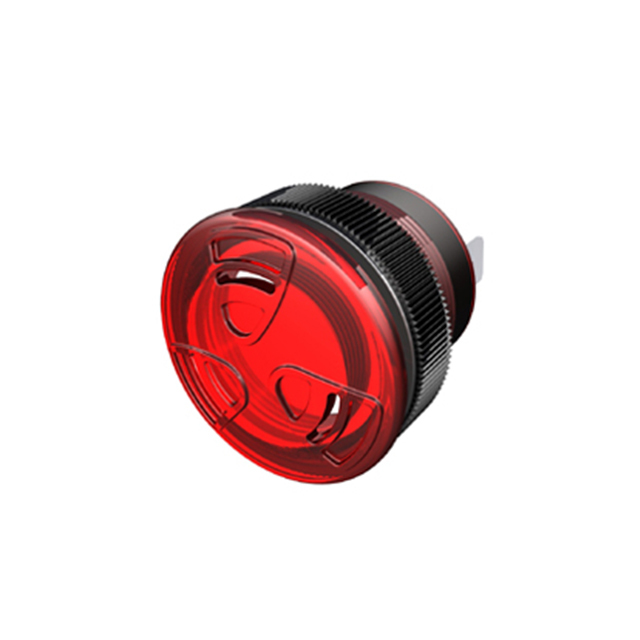

TUHW-88R-930-Q(S)

Active

Floyd Bell Inc

BUZZER 33MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER 33MM PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.55

General part information

Buzzers Indicator, Internally Driven 65 ~ 125mA 3kHz 103dB @ 30V, 61cm Panel Mount Quick Connect Tab - 0.250" (6.35mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TUHW-88R-930-Q(S)	TUHW-88R Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	125 mA	125 mA
Current - Supply [Min]	65 mA	65 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	3 kHz	3 kHz
Height - Seated (Max) [Max] [z]	1.18 in	1.18 in
Height - Seated (Max) [Max] [z]	29.97 mm	29.97 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Warble, Slow	Warble Fast, Warble, Slow
Port Location	Top	Top
Size / Dimension [diameter]	1.299 "	1.299 - 1.3 in
Size / Dimension [diameter]	33 mm	33 - 33.02 mm
Sound Pressure Level (SPL)	103 dB	103 dB
Termination	Quick Connect Tab - 0.250" (6.35mm)	Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V	30 V
Voltage Range [Min]	9 V	9 V

BUZZER 33.02MM PNL MNT

Part	Sound Pressure Level (SPL)	Port Location	Input Type	Approval Agency	Current - Supply [Max]	Current - Supply [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]	Operating Mode	Driver Circuitry	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination
Floyd Bell Inc TUHW-88R-930-Q(F)	103 dB	Top	DC	UL, UR	125 mA	65 mA	1.3 in	33.02 mm	3 kHz	IP68 - Dust Tight, Waterproof	9 V	30 V	Warble Fast	Indicator, Internally Driven	1.18 in	29.97 mm	Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc TUHW-88R-930-Q(S)	103 dB	Top	DC	UL, UR	125 mA	65 mA	1.299 "	33 mm	3 kHz	IP68 - Dust Tight, Waterproof	9 V	30 V	Warble, Slow	Indicator, Internally Driven	1.18 in	29.97 mm	Quick Connect Tab - 0.250" (6.35mm)
