8-968971-2
ActiveTE Connectivity AMP Connectors

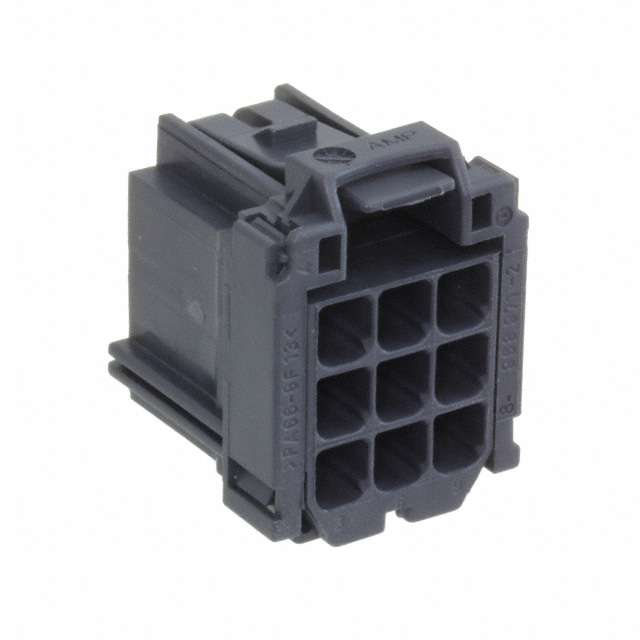

CONN RCPT HSG 9POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-968971-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 9POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8-968971-2 | 968971 Series |
|---|---|---|
| Color | Gray | Natural, Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Latch Lock, Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 9 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.217 in | 0.217 in |
| Row Spacing | 5.5 mm | 5.5 - 5.51 mm |
| Row Spacing | - | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 10 | $ 1.32 | |||
| 100 | $ 1.14 | |||
| 1000 | $ 0.90 | |||
| 5000 | $ 0.81 | |||
| 10000 | $ 0.76 | |||
968971 Series
CONN RCPT HSG 9POS 5.00MM
| Part | Number of Rows | Note | Connector Type | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Pitch [x] | Pitch [x] | Fastening Type | Color | Row Spacing [x] | Row Spacing | Contact Termination | Mounting Type | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-968971-1 | 3 | Contacts Not Included | Receptacle | Female Socket | 9 | -40 °C | 120 °C | Polybutylene Terephthalate (PBT), Glass Filled | 5 mm | 0.197 in | Latch Lock | Natural | 0.217 in | 5.51 mm | Crimp | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 8-968971-2 | 3 | Contacts Not Included | Receptacle | Female Socket | 9 | -40 °C | 120 °C | Polybutylene Terephthalate (PBT), Glass Filled | 5 mm | 0.197 in | Locking Ramp | Gray | 5.5 mm | Crimp | Free Hanging (In-Line) | 0.217 in |
Description
General part information
968971 Series
9 Rectangular Connectors - Housings Receptacle Gray 0.197" (5.00mm)
