1610-0-15-01-30-02-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

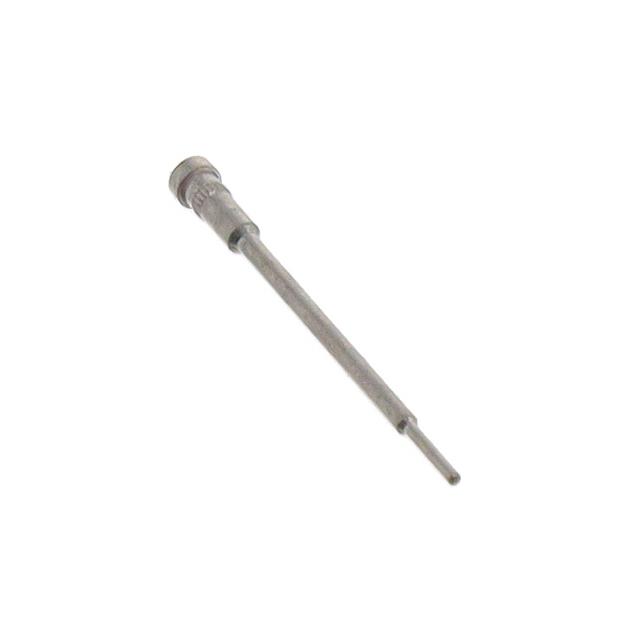

1610-0-15-01-30-02-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1610-0-15-01-30-02-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	19.51 mm
Length - Overall [x]	0.768 "
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.166 in
Socket Depth	4.22 mm
Tail Diameter [diameter]	0.53 mm
Tail Diameter [diameter]	0.021 in
Tail Type	Standard Tail
Termination	Press-Fit

1610-0 Series

Part	Length - Overall [x]	Length - Overall [x]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 1610-0-15-01-30-14-04-0	19.51 mm	0.768 "	Standard Tail	10 Áin	0.25 Ám	0.057 "	1.45 mm	Gold	0.166 in	4.22 mm	Press-Fit	-55 °C	125 °C	Beryllium Copper	1.83 mm	0.072 in	0.53 mm	0.021 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1610-0-15-80-30-27-04-0	19.51 mm	0.768 "	Standard Tail	30 Áin	0.76 Ám	0.057 "	1.45 mm	Gold	0.166 in	4.22 mm	Press-Fit	-55 °C	125 °C	Beryllium Copper	1.83 mm	0.072 in	0.53 mm	0.021 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1610-0-15-80-30-14-04-0	19.51 mm	0.768 "	Standard Tail	10 Áin	0.25 Ám	0.057 "	1.45 mm	Gold	0.166 in	4.22 mm	Press-Fit	-55 °C	125 °C	Beryllium Copper	1.83 mm	0.072 in	0.53 mm	0.021 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1610-0-15-80-30-84-04-0	19.51 mm	0.768 "	Standard Tail	100 µin	2.54 µm	0.057 "	1.45 mm	Tin	0.166 in	4.22 mm	Press-Fit	-55 °C	125 °C	Beryllium Copper	1.83 mm	0.072 in	0.53 mm	0.021 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1610-0-15-01-30-02-04-0	19.51 mm	0.768 "	Standard Tail	100 µin	2.54 µm	0.057 "	1.45 mm	Tin-Lead	0.166 in	4.22 mm	Press-Fit	-55 °C	125 °C	Beryllium Copper	1.83 mm	0.072 in	0.53 mm	0.021 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 1610-0-15-15-30-27-04-0	19.51 mm	0.768 "	Standard Tail	30 Áin	0.76 Ám	0.057 "	1.45 mm	Gold	0.166 in	4.22 mm	Press-Fit	-55 °C	125 °C	Beryllium Copper	1.83 mm	0.072 in	0.53 mm	0.021 in	0.025 "	0.64 mm	0.015 "	0.38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.28
		10	$ 1.08
		25	$ 1.03
		50	$ 1.01
		100	$ 0.97
		250	$ 0.88

Description

General part information

1610-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
