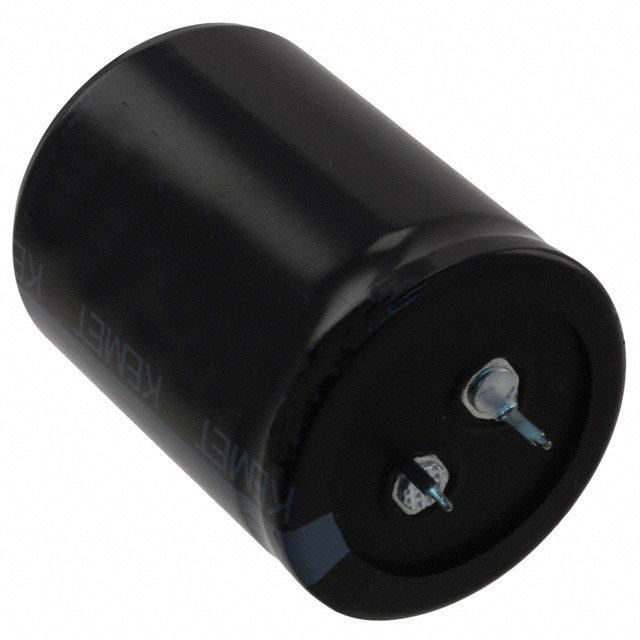

ELG477M400AT5AA

Active

KEMET

CAP ALUMINUM LYTIC 470UF 400V 20% (35 X 45MM) SNAP-IN 10MM 0.423 OHM 1.75A 2000H 105°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP ALUMINUM LYTIC 470UF 400V 20% (35 X 45MM) SNAP-IN 10MM 0.423 OHM 1.75A 2000H 105°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	ELG477M400AT5AA

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	130 mOhm
Height - Seated (Max) [Max] [z]	1.85 in
Height - Seated (Max) [Max] [z]	47 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	2.5375 A
Ripple Current @ Low Frequency	1.75 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	400 V

Part	Tolerance	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Capacitance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Lifetime @ Temp.	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Voltage - Rated
KEMET ELG477M400AT5AA	20 %	1.75 A	0.394 in	10 mm	-25 °C	105 ░C	130 mOhm	2.5375 A	470 µF	Through Hole	1.378 in	35 mm	General Purpose	2000 Hrs	Polar	1.85 in	47 mm	Radial Can - Snap-In	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.01
Newark	Each	500	$ 5.10

General part information

470 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 130mOhm @ 20kHz 2000 Hrs @ 105°C
