AMP - TE CONNECTIVITY 2-34141-1

2-34141-1

Active
TE Connectivity AMP Connectors

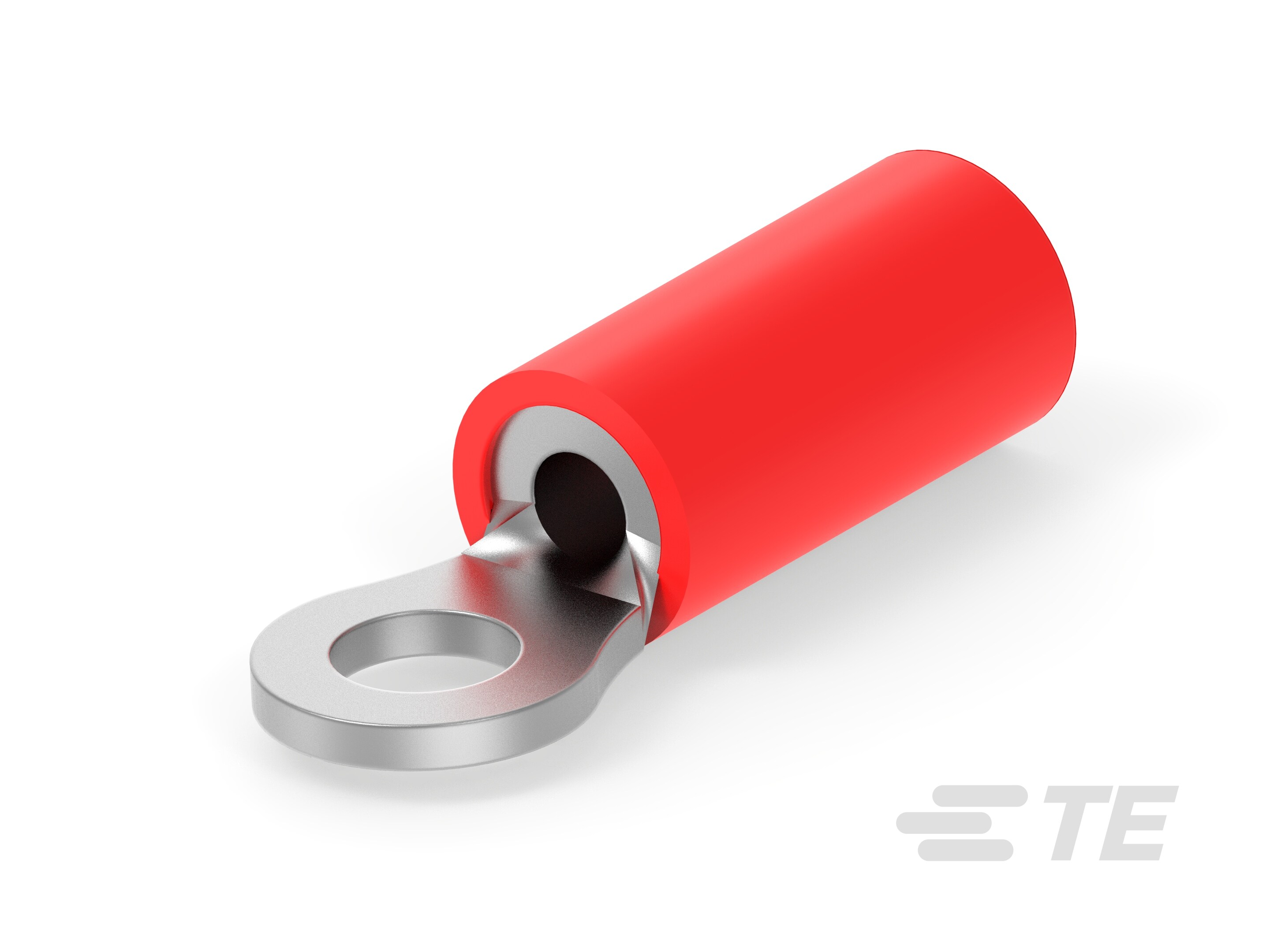

RING TONGUE TERMINAL, M2.5, #4, 16 AWG, 1.65 MM², PLASTI-GRIP SERIES, RED

Find alt
AMP - TE CONNECTIVITY 2-34141-1

2-34141-1

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL, M2.5, #4, 16 AWG, 1.65 MM², PLASTI-GRIP SERIES, RED

Find alt

Description

General part information

34141 Series

Closed Ring Tongue Terminal, 22 AWG, #4 / M2.5 Stud, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification2-34141-1
ColorRed
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Insulation Diameter (Max)0.14 in
Insulation Diameter (Min)0.105 in
Length - Overall0.684 in
Material - InsulationPVC, Poly-Vinyl Chloride
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size4 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.218 in
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)16 AWG
