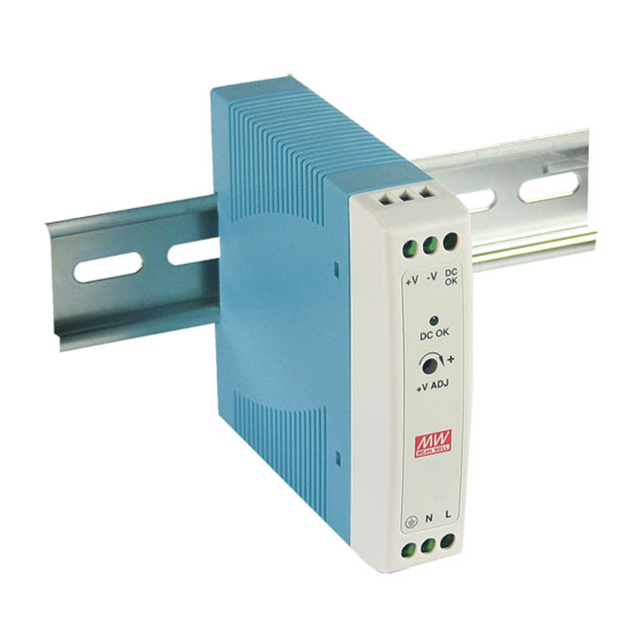

MDR-20-5

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 5V 15W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	MDR-20-5

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Current - Output (Max) [Max]	3 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	76 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	0.89 in
Size / Dimension [y]	22.5 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Voltage - Output 1	Applications	Power (Watts)	DC Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	DC Voltage - Input (Min) [Min]	Input Type
MEAN WELL USA Inc. MDR-20-15	15 V	Industrial ITE (Commercial)	20 W	370 V	Adjustable Output Universal Input	1.34 A	81 %	1	-20 °C	70 °C	85 VAC	264 VAC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	3000 V	120 V	AC or DC
MEAN WELL USA Inc. MDR-20-12	12 V	Industrial ITE (Commercial)	20 W	370 V	Adjustable Output Universal Input	1.67 A	80 %	1	-20 °C	70 °C	85 VAC	264 VAC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	3000 V	120 V	AC or DC
MEAN WELL USA Inc. MDR-20-5	5 V	Industrial ITE (Commercial)	15 W	370 V	Adjustable Output Universal Input	3 A	76 %	1	-20 °C	70 °C	85 VAC	264 VAC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	3000 V	120 V	AC or DC
MEAN WELL USA Inc. MDR-20-24	24 V	Industrial ITE (Commercial)	24 W	370 V	Adjustable Output Universal Input	1 A	84 %	1	-20 °C	70 °C	85 VAC	264 VAC	90 mm	3.54 "	100 mm	0.89 in	22.5 mm	3.94 in	3000 V	120 V	AC or DC
