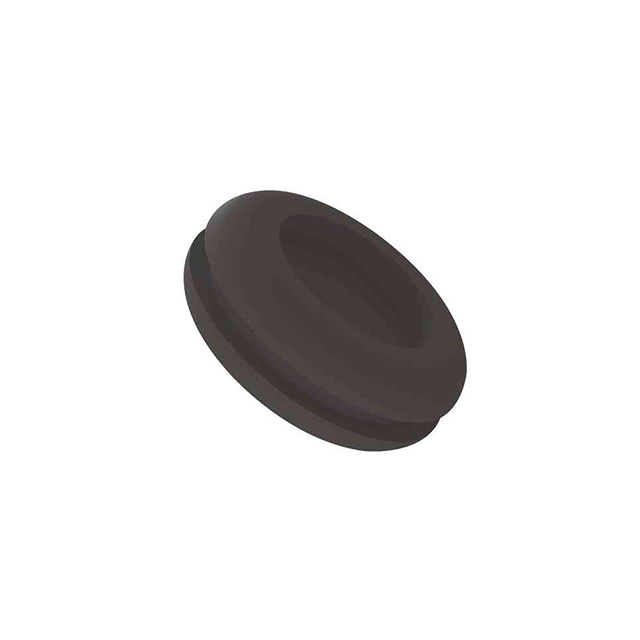

GRD1075061PA

Active

Essentra Access Solutions

DIAPHRAGM GROMMET - TWO SIDED CU

Search across all available documentation for this part.

Active

Essentra Access Solutions

DIAPHRAGM GROMMET - TWO SIDED CU

Technical Specifications

Parameters and characteristics for this part

Specification	GRD1075061PA

Bushing, Grommet Type	Grommet
Color	Black
Diameter - Inside [diameter]	0.61 in
Diameter - Inside [diameter]	15.49 mm
For Use With/Related Products	Wires, Cable
Material	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	UL94 HB
Panel Cutout Dimensions [diameter]	0.787 in
Panel Cutout Dimensions [diameter]	20 mm
Panel Thickness	0.06 in
Panel Thickness	1.52 mm

Part	Material	Bushing, Grommet Type	Panel Thickness	Panel Thickness	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Color	Material Flammability Rating	For Use With/Related Products
Essentra Access Solutions GRD1075061PA	Poly-Vinyl Chloride (PVC)	Grommet	0.06 in	1.52 mm	0.61 in	15.49 mm	0.787 in	20 mm	Black	UL94 HB	Cable Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular - 0.787" (20.00mm) Grommet 0.610" (15.49mm) Black

Technical documentation and resources

No documents available
