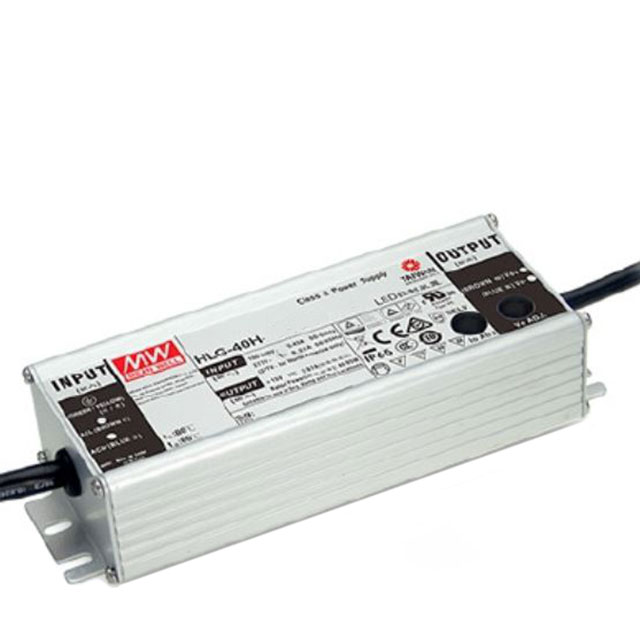

HLG-40H-15AB

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-40H-15AB

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-40H-15AB

Approval Agency	KC, CB, EAC, TUV, PSE, cURus, RCM, CCC, CE
Current - Output (Max) [Max]	2.67 A
Efficiency	86.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Ratings	IP65
Size / Dimension [x]	5.8 "
Size / Dimension [x]	147.2 mm
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output	15 VDC

HLG-40H Series

Part	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Type	Voltage - Isolation	Termination Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Input (Max) [Max]	Features	Power (Watts)	Dimming	Ratings	Topology	Approval Agency	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output
MEAN WELL USA Inc. HLG-40H-42B	1	25.2 V	42 V	Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W	Analog PWM	IP67	AC DC Converter	CB CCC CE cURus PSE RCM TUV	88.5 %	90 VAC	960 mA
MEAN WELL USA Inc. HLG-40H-42AB	1			Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W	Analog PWM	IP65	AC DC Converter	CB CCC CE cURus EAC KC PSE RCM TUV	88.5 %	90 VAC	960 mA	42 V
MEAN WELL USA Inc. HLG-40H-15AB	1			Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W		IP65	AC DC Converter	CB CCC CE cURus EAC KC PSE RCM TUV	86.5 %	90 VAC	2.67 A	15 VDC
MEAN WELL USA Inc. HLG-40H-48A	1	44 V	53 V	Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W		IP65	AC DC Converter	CB CCC CE cURus PSE RCM TUV		90 VAC	840 mA
MEAN WELL USA Inc. HLG-40H-30	1			Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W		IP67	AC DC Converter	CB CCC CE cURus PSE RCM TUV	88.5 %	90 VAC	1.34 A
MEAN WELL USA Inc. HLG-40H-54B	1	32.4 V	54 V	Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	41 W	Analog PWM	IP67	AC DC Converter	CB CCC CE cURus PSE RCM TUV		90 VAC	750 mA
MEAN WELL USA Inc. HLG-40H-30B	1			Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W	Analog PWM	IP67	AC DC Converter	CB CCC CE cURus PSE RCM TUV	88.5 %	90 VAC	1.34 A
MEAN WELL USA Inc. HLG-40H-54A	1	49 V	58 V	Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	41 W		IP65	AC DC Converter	CB CCC CE cURus PSE RCM TUV		90 VAC	750 mA
MEAN WELL USA Inc. HLG-40H-12	1	7.2 V	12 V	Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W		IP67	AC DC Converter	CB CCC CE cURus PSE RCM TUV	86.5 %	90 VAC	3.33 A
MEAN WELL USA Inc. HLG-40H-20B	1	12 V	20 V	Constant Current Voltage	3750 V	Wire Leads	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	-40 °C	80 C	Chassis Mount	305 VAC	OCP OTP OVP SCP	40 W	Analog PWM	IP67	AC DC Converter	CB CCC CE cURus PSE RCM TUV	88 %	90 VAC	2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 36.16

Description

General part information

HLG-40H Series

2.67A 15V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
