796739-2

Active

TE Connectivity AMP Connectors

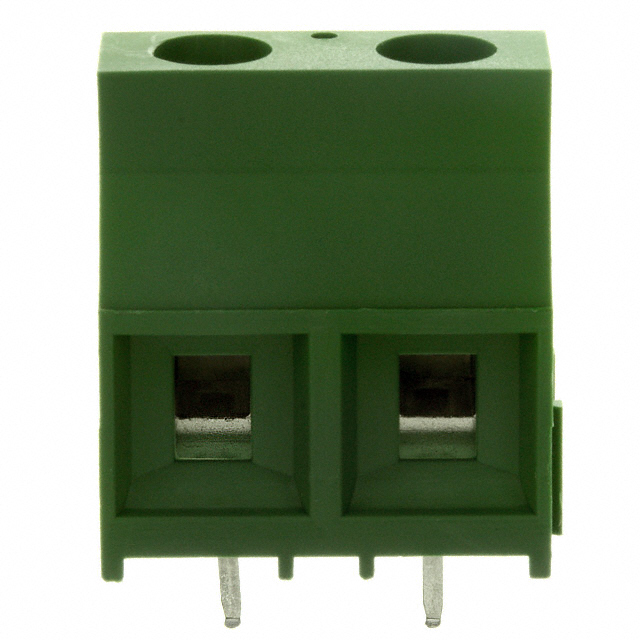

TERM BLK 2P SIDE ENT 9.53MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLK 2P SIDE ENT 9.53MM PCB

Technical Specifications

Parameters and characteristics for this part

TERM BLK 2P SIDE ENT 9.53MM PCB

Part	Color	Torque - Screw	Torque - Screw	Features	Voltage	Mounting Type	Number of Levels	Pitch [x]	Pitch [x]	Screw Material - Plating	Screw Thread	Clamp Material - Plating	Wire Gauge [Min]	Wire Gauge [Max]	Positions Per Level	Mating Orientation	Wire Termination	Current
TE Connectivity AMP Connectors 796739-2	Green	0.79 Nm	7 Lb-In	Interlocking (Side)	600 V	Through Hole	1	9.53 mm	0.375 in	Brass - Nickel Plated	M3	Brass - Nickel Plated	10 AWG	30 AWG	2	Horizontal with Board	Screw - Rising Cage Clamp	30 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.375" (9.53mm) Through Hole
