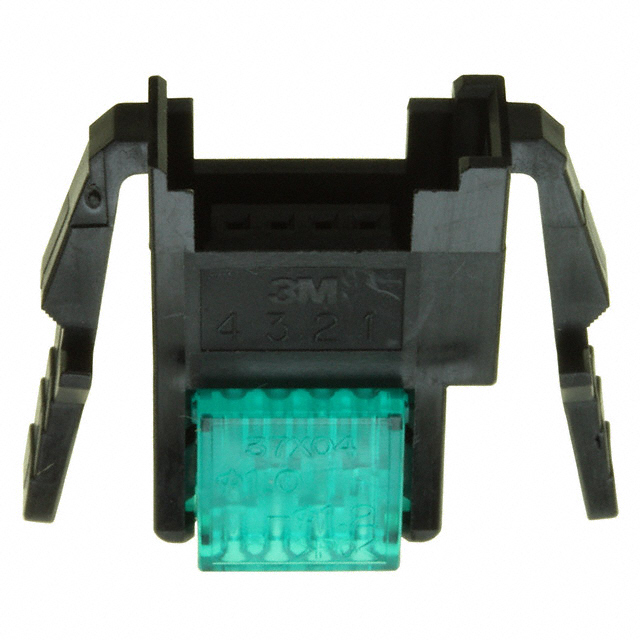

37304-A124-0PE MB

Active

3M (TC)

CONN RCPT 4POS IDC 20-24AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

37304-A124-0PE MB

Active

3M (TC)

CONN RCPT 4POS IDC 20-24AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37304-A124-0PE MB

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Female Socket
Features	Closed End
Number of Positions	4
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG
Wire Type	Discrete

37304 Series

Part	Number of Positions	Pitch [x]	Pitch [x]	Features	Contact Type	Connector Type	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Finish	Cable Termination	Mounting Type	Number of Rows
3M (TC) 37304-3163-000 FL 100	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	24 AWG	26 AWG	8 çin	0.203 çm	Black	Gold	IDC	Free Hanging (In-Line)	1
3M (TC) 37304-2206-000 FL 100	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	20 AWG	22 AWG	8 çin	0.203 çm	Black	Gold	IDC	Free Hanging (In-Line)	1
3M (TC) 37304-3163-0P0 FL 500	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	24 AWG	26 AWG	8 çin	0.203 çm	Black	Gold	IDC		1
3M (TC) 37304-3101-000 FL 500	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	24 AWG	26 AWG	8 çin	0.203 çm	Black	Gold	IDC	Free Hanging (In-Line)	1
3M (TC) 37304-2124-000 FL 100	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	20 AWG	22 AWG	8 çin	0.203 çm	Black	Gold	IDC	Free Hanging (In-Line)	1
3M (TC) 37304-3101-0P0 FL 100	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	24 AWG	26 AWG	8 çin	0.203 çm	Black	Gold	IDC		1
3M (TC) 37304-3101-0P0 FL 500	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	24 AWG	26 AWG	8 çin	0.203 çm	Black	Gold	IDC		1
3M (TC) 37304-A124-0PE MB	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	20 AWG	24 AWG	8 çin	0.203 çm	Black	Gold	IDC		1
3M (TC) 37304-A206-0PE MB	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	20 AWG	24 AWG	8 çin	0.203 çm	Black	Gold	IDC		1
3M (TC) 37304-A206-00E MB	4	0.079 in	2 mm	Closed End	Female Socket	Receptacle	Discrete	20 AWG	24 AWG	8 çin	0.203 çm	Black	Gold	IDC	Free Hanging (In-Line)	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

37304 Series

4 Position Rectangular Receptacle Connector IDC Gold 20-24 AWG
