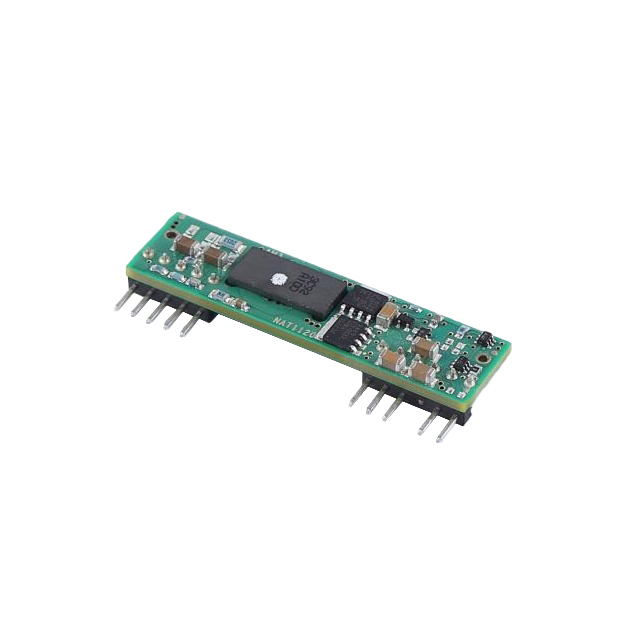

NAT1000N20R05

Active

NetPower

DC DC CONVERTER 0.75-5.5V

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 0.75-5.5V

Technical Specifications

Parameters and characteristics for this part

Specification	NAT1000N20R05

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	20 A
Efficiency	91 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SIP Module
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	6.35 mm, 6.4 mm
Size / Dimension [z]	12.7 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	8.5 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.75 V

DC DC CONVERTER 0.75-5.5V

Part	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Applications	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Control Features	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Efficiency
NetPower NAT1000N20R05	20 A	Adjustable Output, Remote On/Off, Remote Sense	8.5 V	ITE (Commercial)	5.5 V	0.75 V	1	Active Low, Enable	Through Hole	10-SIP Module	85 °C	-40 °C	18 V	6.35 mm, 6.4 mm	50.8 mm	12.7 mm	Non-Isolated PoL Module	91 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 26.50

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 20A 8.5V - 18V Input
