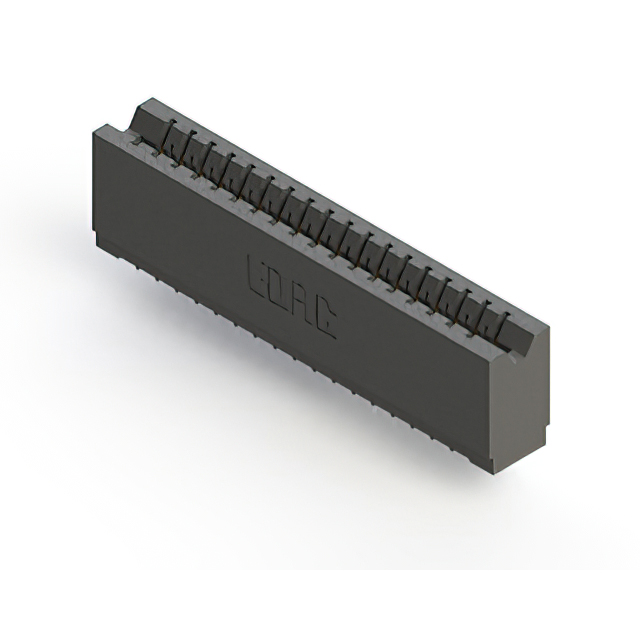

746-018-527-106

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS PRESS-FIT CARD EDGE CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-018-527-106

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions/Bay/Row [custom]	18
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Press-Fit
Termination Rows	1

746-018 Series

Part	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Contact Finish	Number of Positions	Contact Material	Material - Insulation	Mounting Type	Card Type	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Read Out	Gender
EDAC Inc. 746-018-527-106	18	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Black	0.76 Ám	30 Áin	Press-Fit	-40 °C	105 ░C	1	0.125 in	3.18 mm	Cantilever	Single	Female
EDAC Inc. 746-018-520-201	9	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	Press-Fit	-40 °C	105 ░C	2	0.125 in	3.18 mm	Cantilever	Dual	Female
EDAC Inc. 746-018-525-106	18	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Black	0.76 Ám	30 Áin	Press-Fit	-40 °C	105 ░C	1	0.125 in	3.18 mm	Cantilever	Single	Female
EDAC Inc. 746-018-520-501	18	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Black	0.76 Ám	30 Áin	Press-Fit	-40 °C	105 ░C	1	0.125 in	3.18 mm	Cantilever	Single	Female
EDAC Inc. 746-018-527-606	9	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	Press-Fit	-40 °C	105 ░C	2	0.125 in	3.18 mm	Cantilever	Dual	Female
EDAC Inc. 746-018-540-201	9	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	Press-Fit Wire Wrap	-40 °C	105 ░C	2	0.125 in	3.18 mm	Cantilever	Dual	Female
EDAC Inc. 746-018-541-106	18	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Black	0.76 Ám	30 Áin	Press-Fit Wire Wrap	-40 °C	105 ░C	1	0.125 in	3.18 mm	Cantilever	Single	Female
EDAC Inc. 746-018-527-101	18	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Black	0.76 Ám	30 Áin	Press-Fit	-40 °C	105 ░C	1	0.125 in	3.18 mm	Cantilever	Single	Female
EDAC Inc. 746-018-525-606	9	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Dual Edge	Black	0.76 Ám	30 Áin	Press-Fit	-40 °C	105 ░C	2	0.125 in	3.18 mm	Cantilever	Dual	Female
EDAC Inc. 746-018-540-506	18	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Gold	18	Copper Alloy	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Black	0.76 Ám	30 Áin	Press-Fit Wire Wrap	-40 °C	105 ░C	1	0.125 in	3.18 mm	Cantilever	Single	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 6.67

Description

General part information

746-018 Series

18 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
