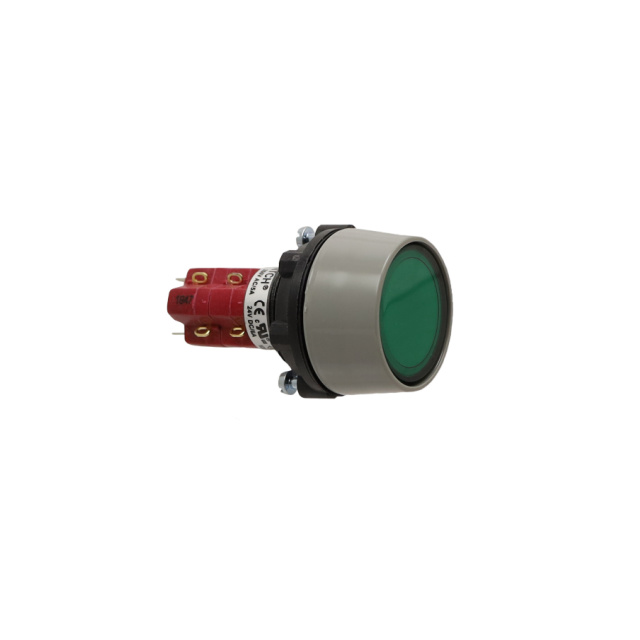

LASOAU120GRN

Active

E-Switch

SWITCH PUSHBUTTON DPDT 8A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON DPDT 8A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	LASOAU120GRN

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	8 A, 6 A
Electrical Life	50000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Circuit	Current Rating (Amps)	Actuator Type	Mechanical Life	Electrical Life	Mounting Type	Voltage Rating - DC	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Color - Actuator/Cap	Actuator Marking	Ingress Protection	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Switch Function
E-Switch LASOAU120RED	DPDT	6 A 8 A	Button Flush Round	100000 Cycles	50000 Cycles	Panel Mount Front	24 V	Standard	55 °C	-20 C	Solder Lug	Red	No Marking	IP65 - Dust Tight Water Resistant	22 mm	125 V	On-Mom
E-Switch LASOAU120GRN	DPDT	6 A 8 A	Button Flush Round	100000 Cycles	50000 Cycles	Panel Mount Front	24 V	Standard	55 °C	-20 C	Solder Lug	Green	No Marking	IP65 - Dust Tight Water Resistant	22 mm	125 V	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Front
