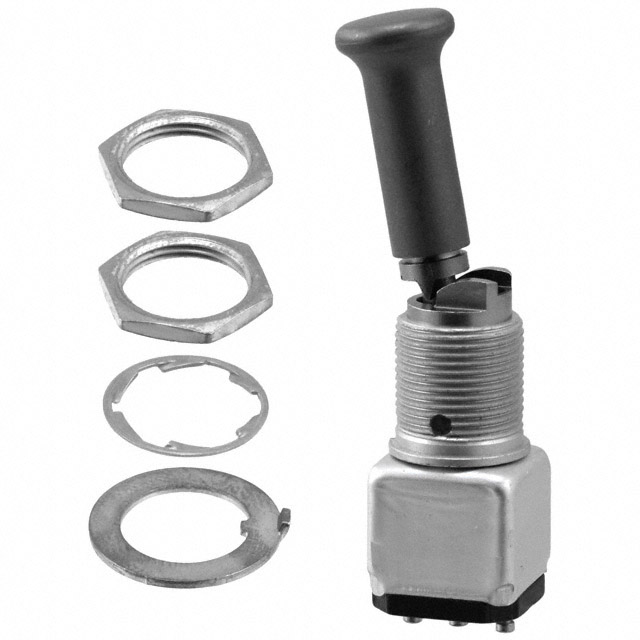

11TW8-3G

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 5A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11TW8-3G	11TW8 Series

Actuator Length [x]	29.46 mm	17.27 - 29.46 mm
Actuator Type	Locking Lever	Standard Round, Locking Lever
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	5 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-On	On-On
Termination Style	Solder Turret	Solder Turret
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	28 V	28 V

SWITCH TOGGLE SPDT 5A 125V

Part	Illumination	Bushing Thread	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - DC	Actuator Length [x]	Voltage Rating - AC	Actuator Type	Circuit	Termination Style	Ingress Protection
Honeywell Sensing and Productivity Solutions 11TW8-3	Non-Illuminated	15/32-32	On-On	12.4 mm	71 °C	-65 ░C	5 A	28 V	17.27 mm	125 V	Standard Round	SPDT	Solder Turret	Environment Sealed
Honeywell Sensing and Productivity Solutions 11TW8-3G	Non-Illuminated	15/32-32	On-On	12.4 mm	71 °C	-65 ░C	5 A	28 V	29.46 mm	125 V	Locking Lever	SPDT	Solder Turret	Environment Sealed
