7292-8PG-3ES

Active

Conxall/Switchcraft

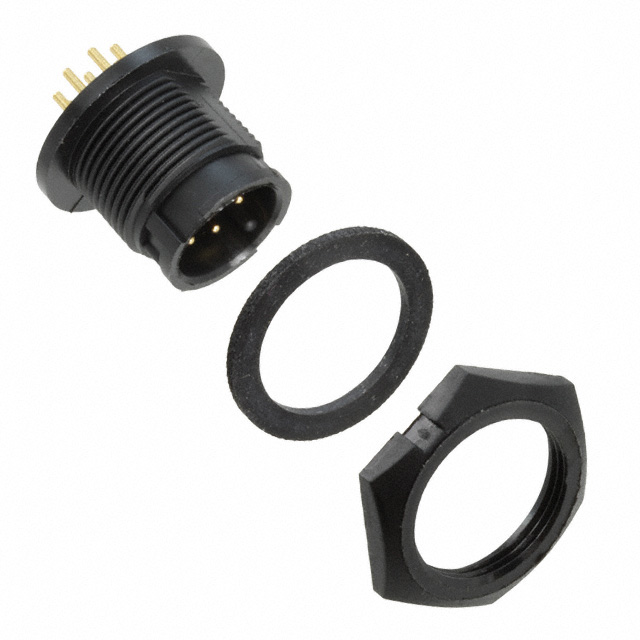

CONN RCPT MALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	7292-8PG-3ES	7292-8PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	Weathertight	Weathertight
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	600 V	600 V

CONN RCPT MALE 8POS GOLD SOLDER

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shielding	Voltage Rating	Number of Positions	Fastening Type	Color	Ingress Protection	Mounting Type	Current Rating (Amps)	Termination	Applications	Primary Material	Connector Type	Mounting Feature	Backshell Material, Plating	Contact Finish - Mating
Conxall/Switchcraft 7292-8PG-3ES	Keyed	-40 °C	115 °C	Brass	Unshielded	600 V	8	Bayonet Lock	Black	Weathertight	Panel Mount, Through Hole	Varies by Wire Gauge	Solder	Automotive, Communication Systems, Instrumentation	Plastic	Male Pins, Receptacle	Bulkhead - Front Side Nut	Nylon, Polyamide (PA)	Gold
