Specification	GC3000-G

Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material	Nylon 6, 6, Polyamide (PA66)
Outside Cable Diameter (Max)	0.71 in
Outside Cable Diameter (Min)	0.55 in
Thread Length	0.55 in
Thread Size (Diameter)	0.75 in
Thread Type	NPT
Type	Cable Gland

GC3000 Series

Part	Outside Cable Diameter (Min)	Outside Cable Diameter (Max)	Material	Type	Thread Length	Thread Size (Diameter)	Thread Type	Color	Ingress Protection Description	Ingress Protection IP Rating
Davies Molding, LLC GC3000-G	0.55 in	0.71 in	6 Nylon 6 Polyamide (PA66)	Cable Gland	0.55 in	0.75 in	NPT	Black	Dust Tight Waterproof	IP67

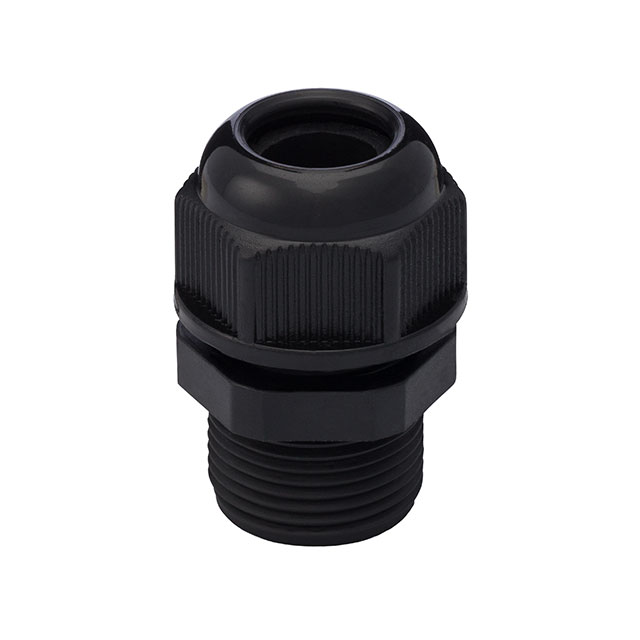

Davies Molding, LLC GC3000-D	0.276 in	0.472 in	Nylon 6 Polyamide (PA6)	Cable Gland	0.55 in	0.5 in	NPT	Black	Dust Tight Waterproof	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
