EXG.0B.305.HLN

Active

LEMO

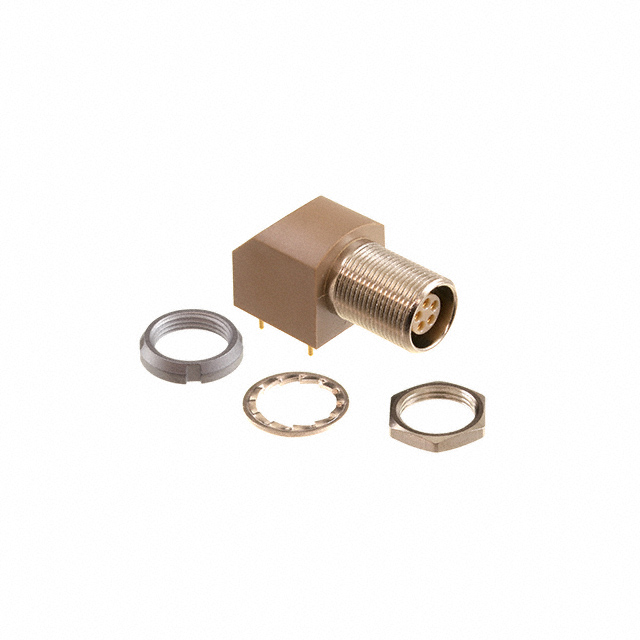

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EXG.0B.305.HLN

Active

LEMO

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.15
		10	$ 47.85
		25	$ 46.01
		50	$ 44.48
		100	$ 42.02

Description

General part information

EXG.0B Series

5 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXG.0B.305.HLN	EXG.0B Series

Color	Brown, Silver	Brown, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	4.5 A	1.5 - 4.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	-	2 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	305	302 - 309
Shielding	Shielded	Shielded
Termination	Solder	Solder

EXG.0B Series

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Primary Material	Material Flammability Rating	Termination	Mounting Type	Color	Contact Material	Contact Finish - Mating	Shell Finish	Orientation	Shell Size - Insert	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Number of Positions	Shielding	Mounting Feature	Ingress Protection	Insert Material	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
LEMO EXG.0B.307.HLNS	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	307	2 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)	7	Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám
LEMO EXG.0B.307.HLN	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	307	2 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)	7	Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám	Ground
LEMO EXG.0B.309.HLN	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	309	1.5 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)	9	Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám	Ground
LEMO EXG.0B.302.HLN	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	302	4.5 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)	2	Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám	Ground
LEMO EXG.0B.303.HLNZ	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	303	4.5 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)		Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám	Ground
LEMO EXG.0B.303.HLN	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	303	4.5 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)		Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám	Ground
LEMO EXG.0B.309.HLNS	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	309	1.5 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)	9	Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám
LEMO EXG.0B.305.HLNZ	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	305	4.5 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)		Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám	Ground
LEMO EXG.0B.305.HLN	Metal	UL94 V-0	Solder	Panel Mount, Right Angle, Through Hole	Brown, Silver	Bronze	Gold	Nickel	G	305	4.5 A	-55 °C	250 °C	Brass and Polyphenylene Sulfide (PPS)		Shielded	Bulkhead - Front Side Nut	IP50	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Push-Pull	59 Áin	1.5 Ám	Ground
