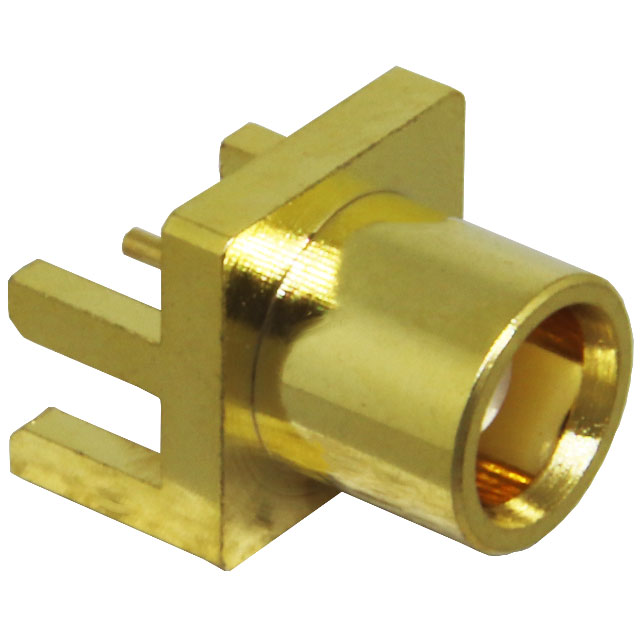

CONMCX003.062

Active

TE Connectivity Linx

CONN MCX RCPT STR 50OHM EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CONMCX003.062

Active

TE Connectivity Linx

CONN MCX RCPT STR 50OHM EDGE MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CONMCX003.062

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

CONMCX Series

Part	Mating Cycles	Fastening Type	Mounting Type	Body Material	Center Contact Material	Shield Termination	Insertion Loss	Mounting Feature	Dielectric Material	Connector Style	Impedance	Housing Color	Center Contact Plating	Includes	Contact Termination	Connector Type	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Finish	Voltage Rating	Cable Group
TE Connectivity Linx CONMCX003.062-L	500	Snap-On	Board Edge End Launch Panel Mount	Brass	Beryllium Copper	Solder	0.1 dB	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold	1 Connector 1 Lockwasher 1 Nut	Solder	Female Socket Receptacle	1	-65 ░C	165 °C	6000 MHz	Gold
TE Connectivity Linx CONMCX013-T	500	Snap-On	Board Edge Cutout Surface Mount	Brass	Beryllium Copper	Solder			Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold		Solder	Female Socket Jack	1	-65 ░C	165 °C	8.5 GHz	Gold	750 VDC
TE Connectivity Linx CONMCX001	500	Snap-On	Through Hole	Brass	Beryllium Copper	Solder	0.1 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold		Solder	Female Socket Receptacle	1	-65 ░C	165 °C	6000 MHz	Gold
TE Connectivity Linx CONMCX007	500	Snap-On	Free Hanging (In-Line)	Brass	Brass	Crimp	0.1 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Silver	Gold		Solder	Male Pin Plug	1	-65 ░C	165 °C	6000 MHz	Nickel		RG-174
TE Connectivity Linx CONMCX012-R178	500	Snap-On	Free Hanging (In-Line) Right Angle	Brass	Brass	Crimp	0.2 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	Solder	Male Pin Plug	1	-65 ░C	165 °C	6000 MHz	Gold	250 VDC	RG-178
TE Connectivity Linx CONMCX002-SMD	500	Snap-On	Surface Mount Right Angle	Brass	Beryllium Copper	Solder	0.2 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold		Solder	Female Socket Receptacle	1	-65 ░C	165 °C	6000 MHz	Gold
TE Connectivity Linx CONMCX003.062	500	Snap-On	Board Edge End Launch	Brass	Beryllium Copper	Solder	0.1 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold		Solder	Female Socket Receptacle	1	-65 ░C	165 °C	6000 MHz	Gold
TE Connectivity Linx CONMCX002	500	Snap-On	Through Hole Right Angle	Brass	Beryllium Copper	Solder	0.2 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold		Solder	Female Socket Receptacle	1	-65 ░C	165 °C	6000 MHz	Gold
TE Connectivity Linx CONMCX007-R178	500	Snap-On	Free Hanging (In-Line)	Brass	Brass	Crimp	0.1 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold	1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support	Crimp Solder	Male Pin Plug	1	-65 ░C	165 °C	6000 MHz	Gold	250 VDC	RG-178
TE Connectivity Linx CONMCX012	500	Snap-On	Free Hanging (In-Line) Right Angle	Brass	Brass	Crimp	0.2 dB		Polytetrafluoroethylene (PTFE)	MCX	50 Ohms	Gold	Gold	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	Solder	Male Pin Plug	1	-65 ░C	165 °C	6000 MHz	Gold		RG-174

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.80
		10	$ 5.06
		25	$ 4.89
		100	$ 4.72
		250	$ 4.23
		500	$ 4.10
		1000	$ 3.77

Description

General part information

CONMCX Series

MCX Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder
