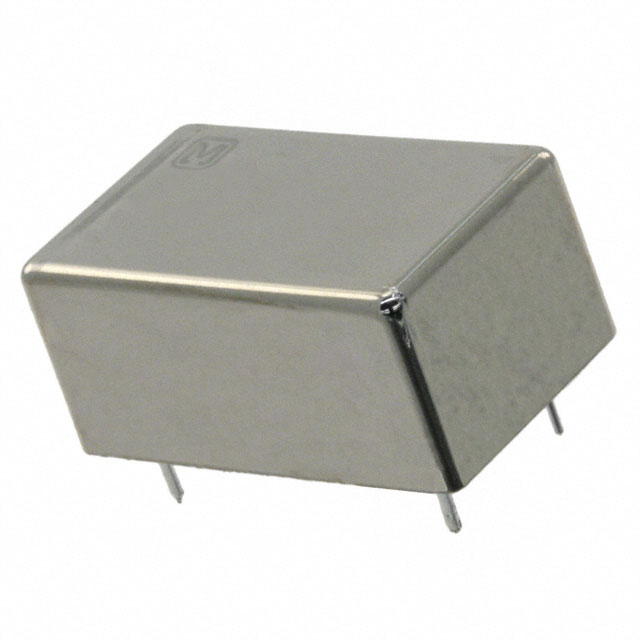

ARX1006
ObsoletePanasonic Electric Works
RELAY RF SPDT 500MA 6V
Deep-Dive with AI
Search across all available documentation for this part.
ARX1006
ObsoletePanasonic Electric Works
RELAY RF SPDT 500MA 6V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARX1006 |
|---|---|
| Coil Current | 33.3 mA |
| Coil Power | 200 mW |
| Coil Resistance | 180 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Gold Plating |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 6 ms |
| Switching Voltage | 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARX10 Series
RELAY RF SPDT 500MA 6V
