3-1376388-4

Active

TE Connectivity AMP Connectors

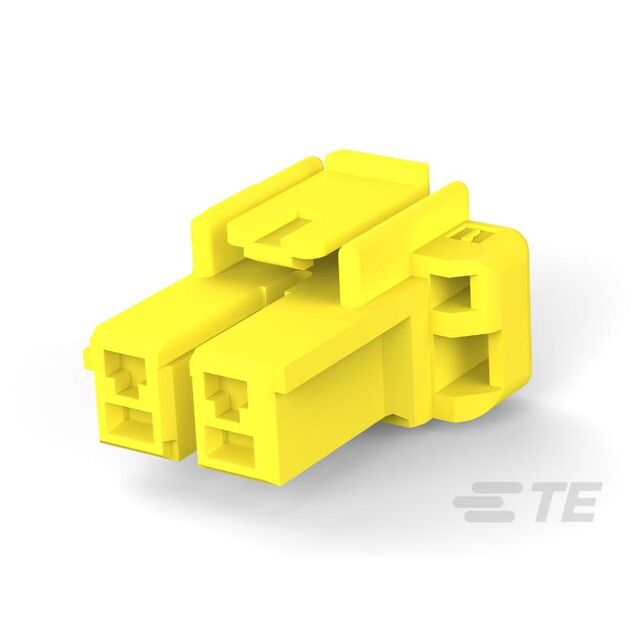

CONN PLUG HSG 2POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 2POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1376388-4	1376388 Series

	-	-
Color	Yellow	Red, Yellow
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 - -30 ░C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

CONN PLUG HSG 2POS 5.00MM

Part	Contact Type	Number of Positions	Contact Termination	Insulation Material	Connector Type	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Note	Fastening Type	Pitch [x]	Pitch [x]	Number of Rows
TE Connectivity AMP Connectors 1-1376388-2	Female Socket	2	Crimp	Polyamide (PA66), Nylon 6/6, Glass Filled	Plug	Free Hanging (In-Line)	Red	-30 ░C	105 ░C	Contacts Not Included	Latch Lock	5 mm	0.197 in	1
TE Connectivity AMP Connectors 1376388-5
TE Connectivity AMP Connectors 3-1376388-4	Female Socket	2	Crimp	Polyamide (PA66), Nylon 6/6, Glass Filled	Plug	Free Hanging (In-Line)	Yellow	-40 °C	105 ░C	Contacts Not Included	Latch Lock	5 mm	0.197 in	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Yellow 0.197" (5.00mm)
