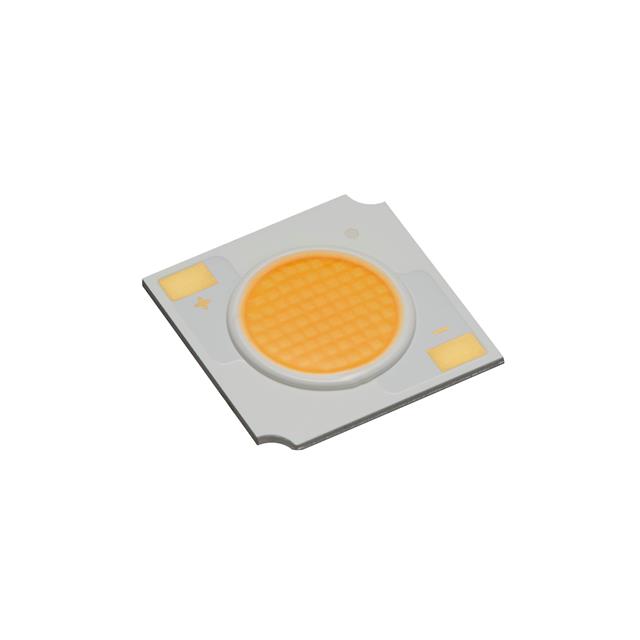

CLU723-1206E1-303M2X2

Active

Citizen

LED COB CLU723 WM WHT SQ 3000K

Search across all available documentation for this part.

Active

Citizen

LED COB CLU723 WM WHT SQ 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	CLU723-1206E1-303M2X2

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.38 A
Current - Test	1.05 A
Features	With Connector
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	11 mm
Lumens/Watt @ Current - Test	131 lm/W
Luminous Flux @ Current/Temperature	5346 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	36.5 V

LED COB CLU723 WM WHT SQ 3000K

Part	Height [z]	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Features	Temperature - Test	CRI (Color Rendering Index)	Lens Type	Luminous Flux @ Current/Temperature	Current - Max [Max]	Configuration	Type	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Color	Current - Test	Voltage - Forward (Vf) (Typ)
Citizen CLU723-1206E1-303M2X2	1.4 mm	11 mm	131 lm/W	With Connector	85 °C	80	Flat	5346 lm	1.38 A	Square	Chip On Board (COB)	3000 K	19 mm	19 mm	Warm, White	1.05 A	36.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU723 White, Warm Square
