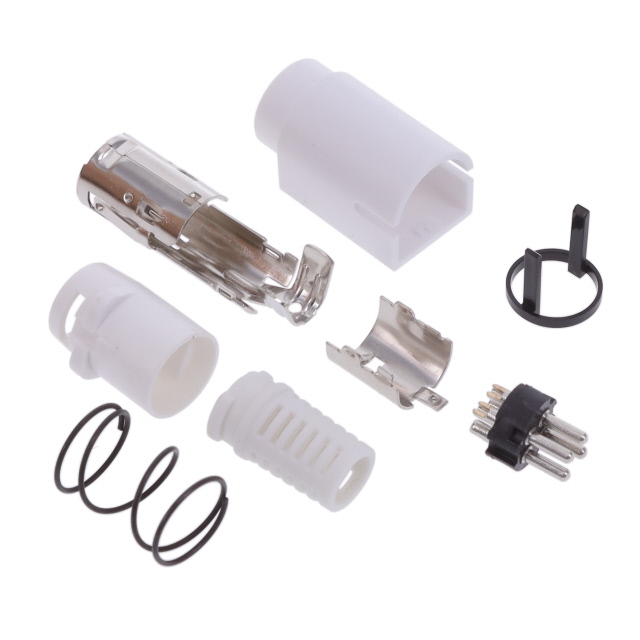

Specification	GTPWRDIN4LW

Applications	Medical
Color	White
Connector Type	Male Pins, Plug
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Snap-In
Features	Strain Relief
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Termination	Solder
Voltage Rating	54 VDC

GTPWRDIN4 Series

Part	Mounting Type	Termination	Orientation	Connector Type	Current Rating	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Features	Voltage Rating	Color	Shielding	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Contact Material	Applications	Insert Material
GlobTek, Inc. GTPWRDIN4LB	Free Hanging (In-Line)	Solder	Keyed	Male Pins Plug	7.5 A	4	50 °C	-20 °C	Strain Relief	54 VDC	Black	Shielded	Silver	Snap-In	UL94 V-2	Brass	Medical	Nylon PA Polyamide
GlobTek, Inc. GTPWRDIN4LW	Free Hanging (In-Line)	Solder	Keyed	Male Pins Plug	7.5 A	4	50 °C	-20 °C	Strain Relief	54 VDC	White		Silver	Snap-In	UL94 V-2	Brass	Medical	Nylon PA Polyamide
