HS2P5M20

Active

Switchcraft Inc.

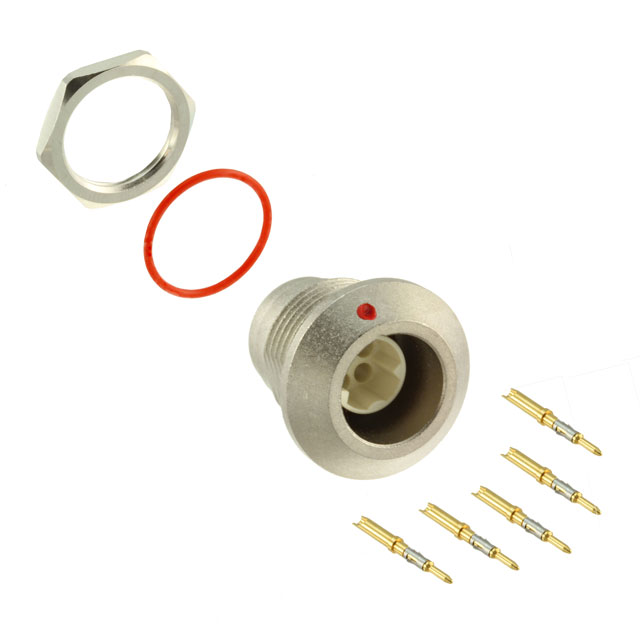

CONN RCPT MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P5M20	HS2P5M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1	UL94 HF-1
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Crimp, Solder Cup	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 5POS GOLD SOLDER

Part	Voltage Rating	Shell Finish	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Orientation	Insert Material	Termination	Applications	Ingress Protection	Contact Material	Mounting Type	Contact Finish - Mating	Shielding	Mounting Feature	Shell Material	Primary Material	Fastening Type	Material Flammability Rating
Switchcraft Inc. HS2P5M20-BP	125 VAC	Electroless Nickel	Male Pins, Receptacle	135 °C	-40 °C	Silver	Keyed	Liquid Crystal Polymer (LCP)	Solder	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Copper Alloy	Panel Mount, Through Hole	Gold	Shielded	Bulkhead - Front Side Nut	Copper Alloy	Metal	Push-Pull
Switchcraft Inc. HS2P5M20	125 VAC	Electroless Nickel	Male Pins, Receptacle	135 °C	-40 °C	Silver	Keyed	Liquid Crystal Polymer (LCP)	Crimp, Solder Cup	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Copper Alloy		Gold	Shielded	Bulkhead - Rear Side Nut	Copper Alloy	Metal	Push-Pull	UL94 HF-1
Switchcraft Inc. HS2P5M20-BPE	125 VAC	Electroless Nickel	Male Pins, Receptacle	135 °C	-40 °C	Silver	Keyed	Liquid Crystal Polymer (LCP)	Solder	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Copper Alloy	Panel Mount, Through Hole	Gold	Shielded	Bulkhead - Front Side Nut	Copper Alloy	Metal	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Crimp or Solder Cup
