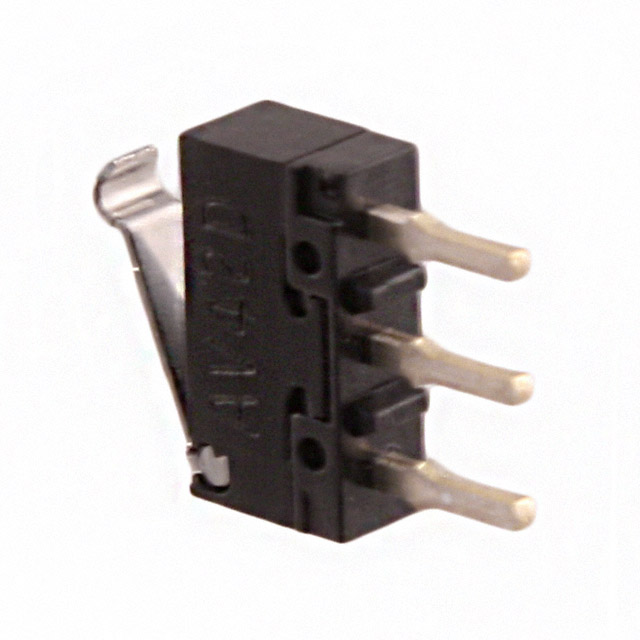

AV4444
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.5A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AV4444
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.5A 30V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AV4444 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA |
| Differential Travel | 0.027 " |
| Differential Travel | 0.7 mm |
| Electrical Life | 20000 Steps |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 29 gf |
| Operating Position | 6.1 mm |
| Operating Position | 0.24 in |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.3 mm |
| Overtravel | 0.011 in |
| Pretravel | 0.087 in |
| Pretravel | 2.2 mm |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.90 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.65 | |||
| 100 | $ 1.58 | |||
| 300 | $ 1.25 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 1.11 | |||
| 5000 | $ 1.00 | |||
Description
General part information
AV444 Series
Switch SPDT Through Hole
