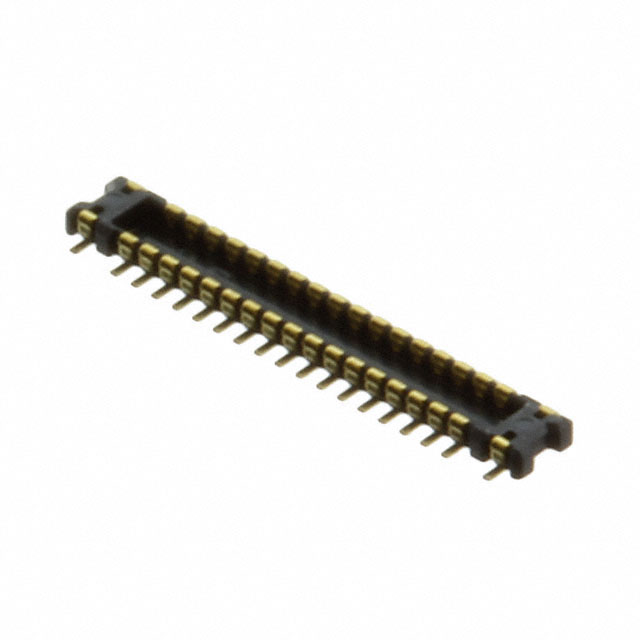

AXG234144

Active

Panasonic Electric Works

CONN HDR 34POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 34POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG234144

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.46 mm
Height Above Board	0.018 in
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	34
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Connector Type	Number of Positions	Height Above Board	Height Above Board	Features	Mounting Type
Panasonic Electric Works AXG234144	0.6 mm	0.35 mm	0.014 in	2	Gold	Header Outer Shroud Contacts	34	0.46 mm	0.018 in	Solder Retention	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	15000	$ 0.75

General part information

34 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
