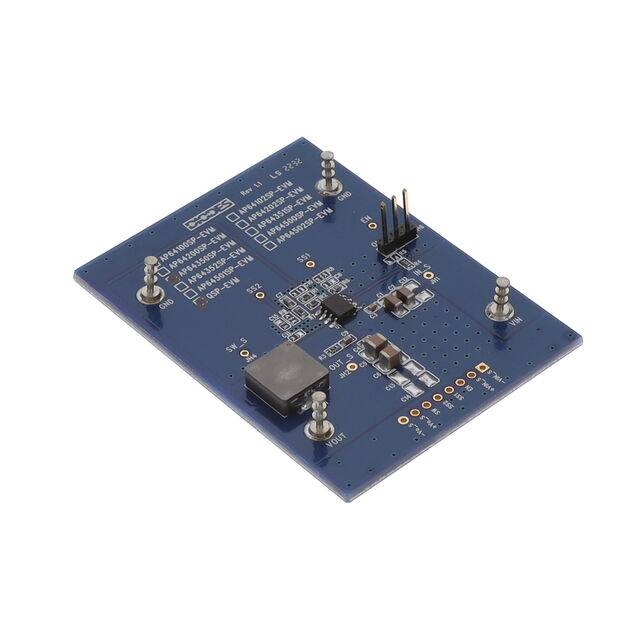

AP64350QSP-EVM

Active

Diodes Inc

EVAL BOARD FOR AP64350Q

Deep-Dive with AI

Search across all available documentation for this part.

AP64350QSP-EVM

Active

Diodes Inc

EVAL BOARD FOR AP64350Q

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP64350QSP-EVM

Board Type	Fully Populated
Current - Output	3.5 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP64350Q
Voltage - Input [Max]	40 V
Voltage - Input [Min]	3.8 V
Voltage - Output [Max]	40 V
Voltage - Output [Min]	0.8 V

AP64350 Series

3.8V TO 40V INPUT, 3.5A LOW IQ SYNCHRONOUS BUCK

Part	Main Purpose	Voltage - Output [Min]	Voltage - Output [Max]	Supplied Contents	Board Type	Utilized IC / Part	Outputs and Type	Outputs and Type	Current - Output	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Package / Case	Package / Case	Output Type	Output Configuration	Mounting Type	Supplier Device Package	Qualification	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]	Frequency - Switching [Max]	Synchronous Rectifier	Voltage - Output (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Grade	Function	Topology
Diodes Inc AP64350QSP-EVM	DC/DC Step Down	0.8 V	40 V	Board(s)	Fully Populated	AP64350Q	Non-Isolated	1	3.5 A	Buck	3.8 V	40 V
Diodes Inc AP64350QSP-13									3.5 A				0.154 in	8-SOIC	3.9 mm	Adjustable	Positive	Surface Mount	8-SO-EP	AEC-Q100	0.8 V	100 kHz	2.2 MHz		40 V	1	-40 °C	125 °C	3.8 V	Automotive	Step-Down	Buck

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 41.15

Description

General part information

AP64350 Series

The AP64350 is a 3.5A, synchronous buck converter with a wide input voltage range of 3.8V to 40V. The device fully integrates a 75mΩ high-side power MOSFET and a 45mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.

Documents

Technical documentation and resources

No documents available
