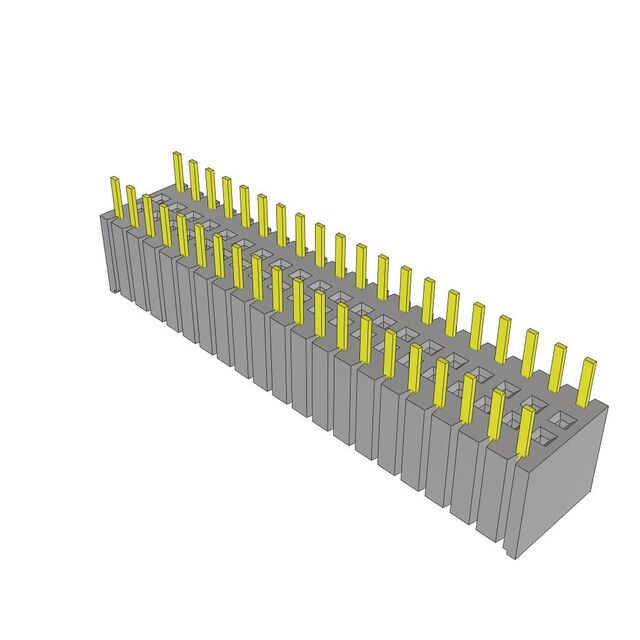

BSW-120-04-T-D

Active

Samtec Inc.

CONN RCPT 40POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSW-120-04-T-D

Active

Samtec Inc.

CONN RCPT 40POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-120-04-T-D

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

BSW-120 Series

Part	Insulation Material	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Insulation Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Fastening Type	Contact Material	Contact Shape	Connector Type	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-120-04-G-M	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	1	-55 °C	125 °C	3.18 mm	0.125 in	Gold	All	0.51 µm	20 µin	Solder	20	Push-Pull	Phosphor Bronze	Square	Breakaway Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. BSW-120-04-G-D	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	2	-55 °C	125 °C	4.19 mm	0.165 in	Gold	All	0.51 µm	20 µin	Solder	40	Push-Pull	Phosphor Bronze	Square	Breakaway Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in
Samtec Inc. BSW-120-04-T-D	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	2	-55 °C	105 ░C	4.19 mm	0.165 in		All			Solder	40	Push-Pull	Phosphor Bronze	Square	Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in
Samtec Inc. BSW-120-04-S-D	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	2	-55 °C	125 °C	4.19 mm	0.165 in	Gold	All	0.76 Ám	30 Áin	Solder	40	Push-Pull	Phosphor Bronze	Square	Breakaway Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in
Samtec Inc. BSW-120-24-S-D	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	2	-55 °C	125 °C	4.19 mm	0.165 in	Gold	All	0.76 Ám	30 Áin	Solder	40	Push-Pull	Phosphor Bronze	Square	Breakaway Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in
Samtec Inc. BSW-120-04-G-S	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	1	-55 °C	125 °C			Gold	All	0.51 µm	20 µin	Solder	20	Push-Pull	Phosphor Bronze	Square	Breakaway Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm			4.32 mm	0.17 in
Samtec Inc. BSW-120-24-S-S	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	1	-55 °C	125 °C			Gold	All	0.76 Ám	30 Áin	Solder	20	Push-Pull	Phosphor Bronze	Square	Breakaway Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm			4.32 mm	0.17 in
Samtec Inc. BSW-120-04-L-S	Polyethylene Terephthalate (PET) Glass Filled	Bottom Mount Through Hole	0.35 in	8.89 mm	Female Socket	Black	1	-55 °C	125 °C			Gold	All	0.25 çm	10 çin	Solder	20	Push-Pull	Phosphor Bronze	Square	Breakaway Receptacle	Tin	UL94 V-0	0.1 in	2.54 mm			4.32 mm	0.17 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.03

Description

General part information

BSW-120 Series

40 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Bottom Mount Tin
