LAN9252TV/ML

Active

Microchip Technology

10/100 ETHERCAT SLAVE CONTROLLER 64 QFN 9X9X0.9MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

LAN9252TV/ML

Active

Microchip Technology

10/100 ETHERCAT SLAVE CONTROLLER 64 QFN 9X9X0.9MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

LAN9252 Series

2/3-port EtherCAT slave controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers Interfaces to most 8/16-bit embedded controllers and 32-bit embedded controllers with an 8/16-bit bus Dual Integrated Ethernet PHYs with HP Auto-MDIX Cable diagnostic support 100 Base FX support via external transceiver 1.8V to 3.3V variable voltage I/O Integrated 1.2V regulator for single 3.3V operation Low pin count and small body size package Motor Motion Control Process/Factory Automation Communication Modules, Interface Cards Sensors Power Grid Building Automation Hydraulic & Pneumatic Valve Systems

Technical Specifications

Parameters and characteristics for this part

Specification	LAN9252TV/ML

Function	Controller
Interface	SPI
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	64-VFQFN Exposed Pad
Package Length	9 mm
Package Name	64-QFN
Package Width	9 mm
Protocol	Ethernet
Standards	100BASE-TX, 100BASE-FX, 10BASE-FX, 100BASE-T, 10BASE-T, 10BASE-TX
Voltage - Supply (Maximum)	3.3 V
Voltage - Supply (Minimum)	1.8 V

LAN9252 Series

Part	Package Width	Package Name	Package Length	Package / Case	Function	Protocol	Operating Temperature (Min)	Operating Temperature (Max)	Standards	Interface	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Supplied Contents	Contents	Utilized IC / Part	Secondary Attributes	Type	Primary Attributes
Microchip Technology LAN9252TV/ML	9 mm	64-QFN	9 mm	64-VFQFN Exposed Pad	Controller	Ethernet	-40 °C	105 °C	100BASE-FX 100BASE-T 100BASE-TX 10BASE-FX 10BASE-T 10BASE-TX	SPI	3.3 V	1.8 V
Microchip Technology EVB-LAN9252-SPI					Ethernet								Board(s)	Board	LAN9252	On-Board LEDs	Interface	EtherCAT Slave Controller
Microchip Technology LAN9252I/ML	9 mm	64-QFN	9 mm	64-VFQFN Exposed Pad	Controller	Ethernet	-40 °C	85 °C	100BASE-FX 100BASE-T 100BASE-TX 10BASE-FX 10BASE-T 10BASE-TX	SPI	3.3 V	1.8 V
Microchip Technology EVB-LAN9252-HBI					Ethernet								Board(s)	Board	LAN9252	On-Board LEDs	Interface	EtherCAT Slave Controller
Microchip Technology EVB-LAN9252-3PORT					Ethernet								Board(s)	Board	LAN9252	On-Board LEDs	Interface	EtherCAT Slave Controller

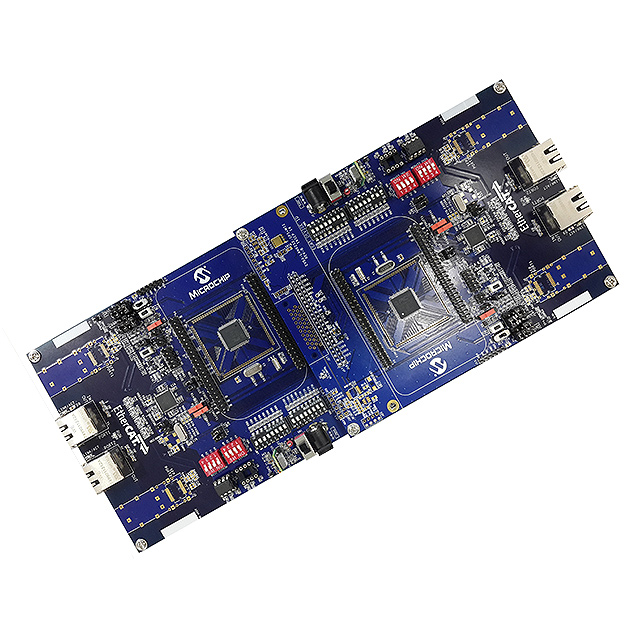

Microchip Technology EVB-LAN9252-4PORT					Ethernet								Board(s)	Board	LAN9252	On-Board LEDs	Interface	EtherCAT Slave Controller
Microchip Technology LAN9252T/PT	10 mm	64-TQFP-EP	10 mm	64-TQFP Exposed Pad	Controller	Ethernet	0 °C	70 °C	100BASE-FX 100BASE-T 100BASE-TX 10BASE-FX 10BASE-T 10BASE-TX	SPI	3.3 V	1.8 V
Microchip Technology LAN9252/ML	9 mm	64-QFN	9 mm	64-VFQFN Exposed Pad	Controller	Ethernet	0 °C	70 °C	100BASE-FX 100BASE-T 100BASE-TX 10BASE-FX 10BASE-T 10BASE-TX	SPI	3.3 V	1.8 V
Microchip Technology EVB-LAN9252-PICTAIL					Ethernet								Board(s)	Board	LAN9252	On-Board LEDs	Interface	EtherCAT Slave Controller

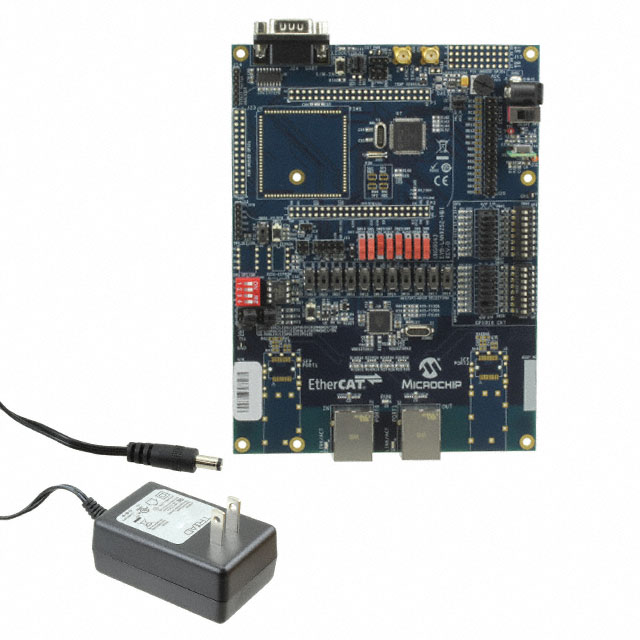

Microchip Technology EVB-LAN9252-HBIPLUS					Ethernet								Board(s)	Board	LAN9252	On-Board LEDs	Interface	EtherCAT Slave Controller

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

LAN9252TV/ML | Datasheet
