M3DDA-1440K

Active

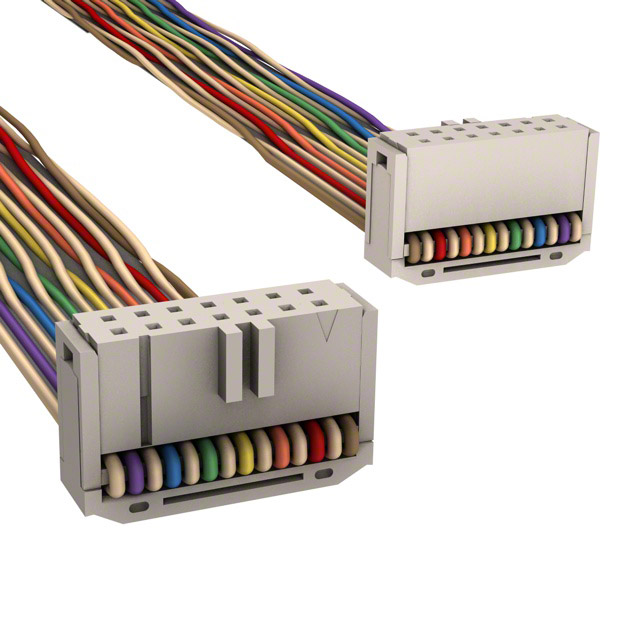

IDC CABLE - MKR14A/MC14F/MKR14A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 891 Series Datasheet +1

M3DDA-1440K

Active

IDC CABLE - MKR14A/MC14F/MKR14A

Deep-Dive with AI

DocumentsDatasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.85
		10	$ 9.87
		25	$ 8.92
		50	$ 8.28
		100	$ 7.70
		250	$ 7.01
		500	$ 6.55
		1000	$ 6.13

Description

General part information

M3DDA Series

14 Position Cable Assembly Rectangular Socket to Socket 3.34' (1.02m)

Documents

Technical documentation and resources

Datasheet

891 Series Datasheet

Datasheet

1700 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3DDA-1440K	M3DDA Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length	-	1.52 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 - 5 ft
Length [x]	1.02 m	1.02 - 914.4 mm
Length [x]	3.34 ft	1.5 - 3.34 ft
Number of Positions	14	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3DDA Series

IDC CABLE - MKR16A/MC16G/MKR16A

Part	Connector Type	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Rows	Contact Finish	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Number of Positions	Length	Length	Length	Length
3M M3DDA-1618J	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold	457.2 mm	1.5 ft	0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin	16
3M M3DDA-1440K	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold	1.02 m	3.34 ft	0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin		Multiple, Twisted Pair (Flat)	14
3M M3DDA-2418R	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold	457.2 mm	1.5 ft	0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin		Multiple, Ribbon	24
3M M3DDA-3436J	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold	914.4 mm	3 ft	0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin			34
3M M3DDA-2006R	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold			0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin		Multiple, Ribbon	20	152.4 mm	6 "	0.5 '
3M M3DDA-2620K	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold			0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin		Multiple, Twisted Pair (Flat)	26	508 mm			1.67 ft
3M M3DDA-2636J	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold	914.4 mm	3 ft	0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin			26
3M M3DDA-3036R	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold	914.4 mm	3 ft	0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin		Multiple, Ribbon	30
3M M3DDA-6018J	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold	457.2 mm	1.5 ft	0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin			60
3M M3DDA-1606R	Socket to Socket	Unshielded	0.05 "	1.27 mm	IDC	2	Gold			0.1 in	2.54 mm	Polarizing Key, Strain Relief	0.76 Ám	30 Áin	16	Multiple, Ribbon		152.4 mm	6 "	0.5 '
