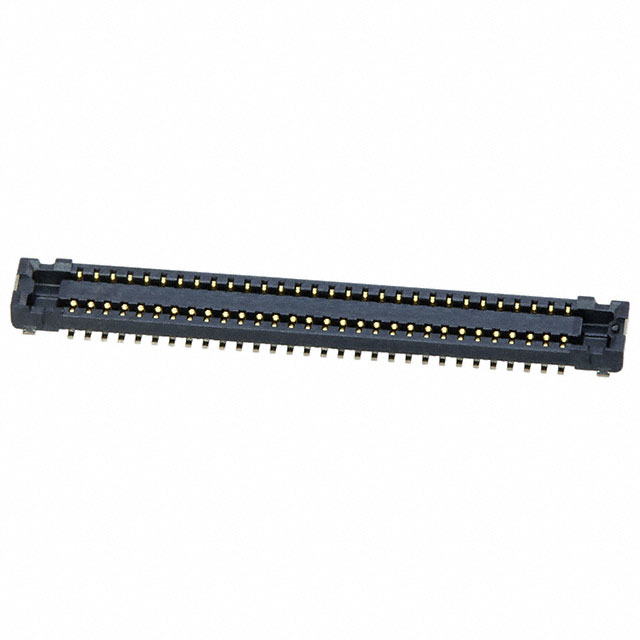

AXE160527A

Obsolete

Panasonic Electric Works

CONN SOCKET 60POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE160527A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Number of Rows
Panasonic Electric Works AXE160527A	Solder Retention	0.016 in	0.4 mm	Socket Center Strip Contacts	0.8 mm	60	0.03 in	0.75 mm	Gold	Surface Mount	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Socket, Center Strip Contacts Surface Mount Gold
