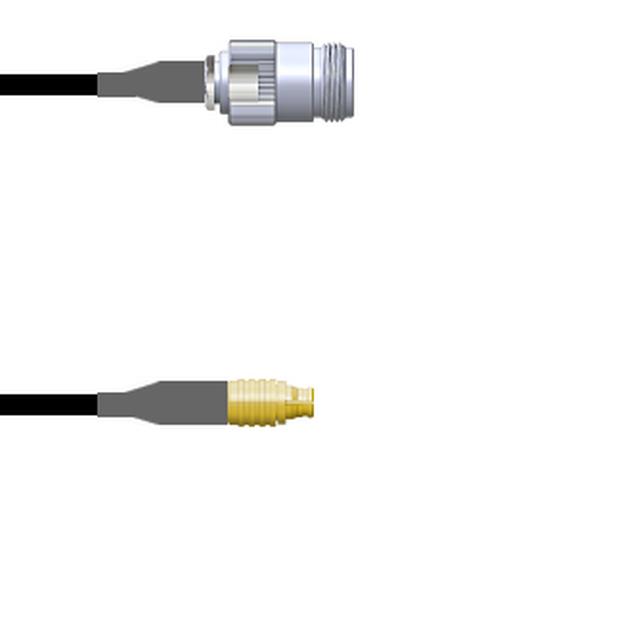

Q-200440003036i

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-200440003036i

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-200440003036i

1st Connector	SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-200440 Series

Part	Length	Length	Length	Features	Style	Overall Impedance	2nd Connector Mounting Type	1st Connector Mounting Type	Frequency - Max [Max]	1st Connector	2nd Contact Gender	Cable Type	1st Contact Gender	2nd Connector	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-2004400052.5M	8.2 '	98.4 in	2.5 m	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-316	Male	N-Type Jack	Copper
Amphenol Custom Cable Q-200440003.25M				Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-174	Male	N-Type Jack	Black	9.843 "	250 mm
Amphenol Custom Cable Q-200440003002M	6.6 ft	78.7 in	2 m	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-174	Male	N-Type Jack	Black
Amphenol Custom Cable Q-200440005036i		36 in	91.44 cm	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-316	Male	N-Type Jack	Copper
Amphenol Custom Cable Q-2004400032.5M	8.2 '	98.4 in	2.5 m	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-174	Male	N-Type Jack	Black
Amphenol Custom Cable Q-200440003009i		9 "	228.6 mm	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-174	Male	N-Type Jack	Black
Amphenol Custom Cable Q-200440005001M	3.3 ft	39.4 in	1 m	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-316	Male	N-Type Jack	Copper
Amphenol Custom Cable Q-200440005002M	6.6 ft	78.7 in	2 m	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-316	Male	N-Type Jack	Copper
Amphenol Custom Cable Q-200440003036i		36 in	91.44 cm	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-174	Male	N-Type Jack	Black
Amphenol Custom Cable Q-200440005.75M		29.53 "	750 mm	Shielded	SMP to N-Type	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	11 GHz	SMP Plug	Female	RG-316	Male	N-Type Jack	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.18
		25	$ 102.16
		50	$ 100.14
		100	$ 98.12
		250	$ 96.10

Description

General part information

Q-200440 Series

Cable Assembly Coaxial SMP to N-Type RG-174 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
