Q-1S04K0008024i

Active

Amphenol Custom Cable

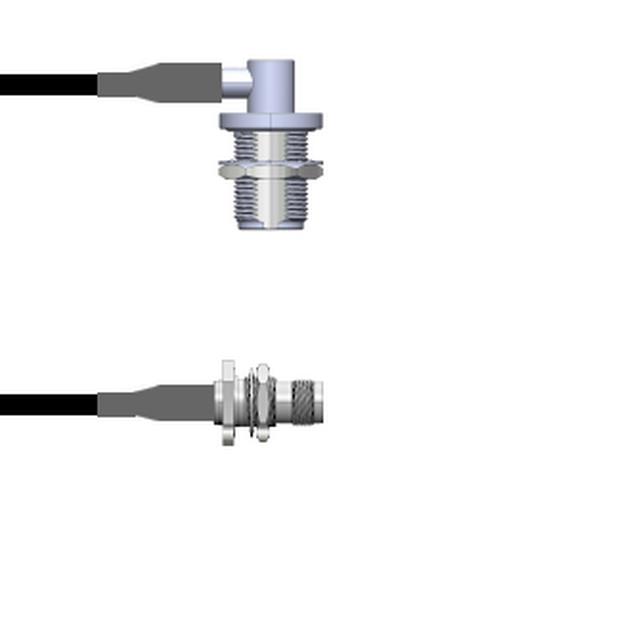

CBL ASSY NTYPE-TNC JACK-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S04K0008024i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S04K0008024i

1st Connector	N-Type Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms

Q-1S04K0 Series

Part	Cable Type	1st Connector	1st Contact Gender	Length	Length	1st Connector Mounting Feature	2nd Contact Gender	1st Connector Mounting Type	2nd Connector	Overall Impedance	Color	2nd Connector Mounting Feature	2nd Connector Mounting Type	Frequency - Max [Max]	Features	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1S04K00080.5M	RG-58	N-Type Jack Right Angle	Female	50 cm	19.69 "	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded
Amphenol Custom Cable Q-1S04K00081.5M	RG-58	N-Type Jack Right Angle	Female	1.5 m	59.1 in	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded	4.9 ft
Amphenol Custom Cable Q-1S04K0008012i	RG-58	N-Type Jack Right Angle	Female	304.8 mm	12 "	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded
Amphenol Custom Cable Q-1S04K0008024i	RG-58	N-Type Jack Right Angle	Female	609.6 mm	24 "	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded
Amphenol Custom Cable Q-1S04K0008018i	RG-58	N-Type Jack Right Angle	Female			Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1S04K0008009i	RG-58	N-Type Jack Right Angle	Female	228.6 mm	9 "	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded
Amphenol Custom Cable Q-1S04K0008003M	RG-58	N-Type Jack Right Angle	Female	3 m	118.1 in	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded	9.8 '
Amphenol Custom Cable Q-1S04K0008.75M	RG-58	N-Type Jack Right Angle	Female	750 mm	29.53 "	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded
Amphenol Custom Cable Q-1S04K0008006i	RG-58	N-Type Jack Right Angle	Female	152.4 mm	6 in	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded
Amphenol Custom Cable Q-1S04K0008036i	RG-58	N-Type Jack Right Angle	Female	91.44 cm	36 in	Bulkhead - Front Side Nut	Female	Panel Mount	TNC Jack	50 Ohms	Black	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 110.10
		25	$ 108.02
		50	$ 105.93
		100	$ 103.84
		250	$ 101.76

Description

General part information

Q-1S04K0 Series

Cable Assembly Coaxial N-Type to TNC RG-58 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
