2261054
ActivePhoenix Contact

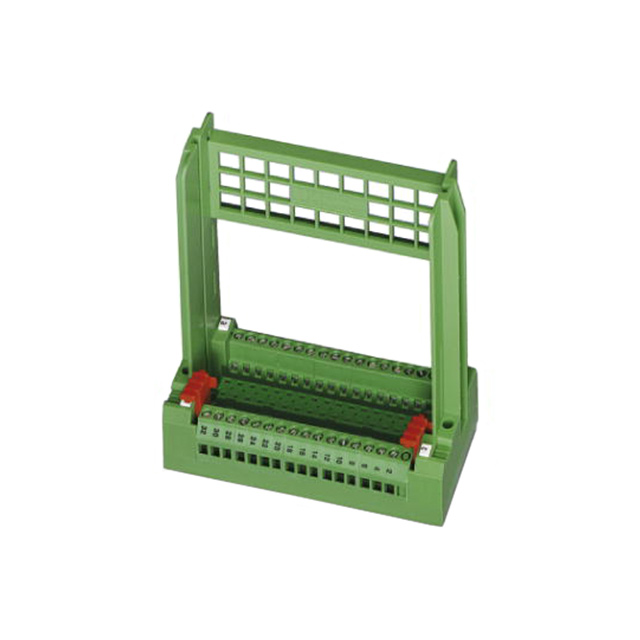

PLUG-IN CARD BLOCK 5.08MM 32POS
Deep-Dive with AI
Search across all available documentation for this part.
Documents2261054
2261054
ActivePhoenix Contact
PLUG-IN CARD BLOCK 5.08MM 32POS
Deep-Dive with AI
Documents2261054
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2261054 | SKBI Series |
|---|---|---|
| Convert From (Adapter End) | Terminal Blocks, 32 Pos, Screw Connection, 2 Rows | Screw Connection, Terminal Blocks, Terminal Blocks, Screw Connection, 30 Pos, 2 Rows, 2 Rows, 15 Pos, 32 Pos, 48 Pos, 3 Rows |
| Convert From (Adapter End) | - | 2 - 64 Rows |
| Convert To (Adapter End) | 32 Pin | 15 - 64 Pos |
| Convert To (Adapter End) | Card Edge Connector | Card Edge Connector |
| Mounting Type | Board Mounted | Board Mounted |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 12 AWG | 10 - 12 AWG |
SKBI Series
PLUG-IN CARD BLOCK 64POS 4A
| Part | Convert From (Adapter End) | Convert From (Adapter End) | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|
Phoenix Contact 2264080 | 4 Rows, 64 | Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 64 Pos |
Phoenix Contact 2269140 | Terminal Blocks, Screw Connection, 30 Pos, 2 Rows | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 15 Pos | |
Phoenix Contact 2269153 | 15 Pos, 2 Rows, Screw Connection, Terminal Blocks | 10 AWG | 24 AWG | Board Mounted | Card Edge Connector | 15 Pos | |
Phoenix Contact 2261096 | 2 Rows, 32 Pos, Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 32 Pin | |
Phoenix Contact 2265034 | 4 Rows, 64 | Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 64 Pos |
Phoenix Contact 2264093 | 3 Rows, 48 Pos, Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 64 Pos | |
Phoenix Contact 2263036 | 4 Rows, 64 | Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 64 Pos |
Phoenix Contact 2263117 | 4 Rows, 64 | Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 64 Pos |
Phoenix Contact 2261038 | 2 Rows, 32 Pos, Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 32 Pin | |
Phoenix Contact 2201519 | 2 Rows, 31 Pos | Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Board Mounted | Card Edge Connector | 31 Pos |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SKBI Series
Adapter Terminal Blocks, Screw Connection, 32 Pos, 2 Rows To Card Edge Connector, 32 Pos
Documents
Technical documentation and resources
