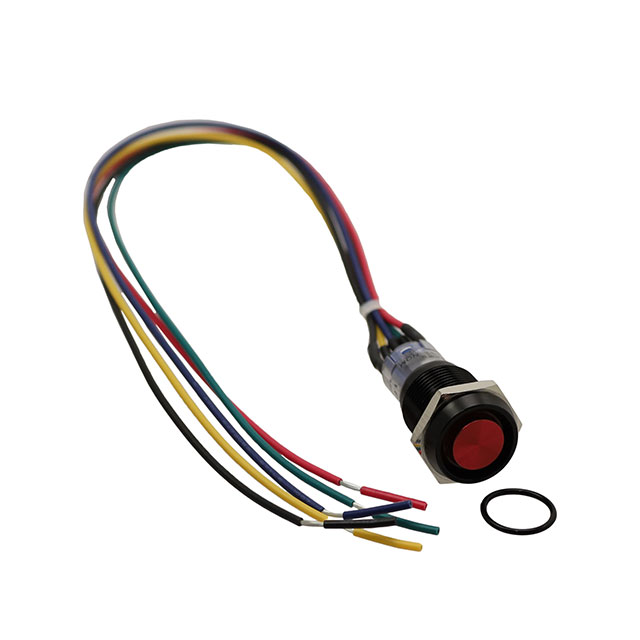

PV3WGWB019G-311

Active

E-Switch

SWITCH PB SPDT 2A 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB SPDT 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	PV3WGWB019G-311

Actuator Marking	No Marking
Actuator Type	Button, Full Guard, Round
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.8 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Illumination Voltage (Nominal)	Type	Ingress Protection	Termination Style	Panel Cutout Dimensions [diameter]	Mechanical Life	Switch Function	Mounting Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Electrical Life	Illumination Type, Color	Circuit	Actuator Type
E-Switch PV3WGWB019G-311	1.8 VDC	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Wire Leads	16 mm	200000 Cycles	On-Mom	Panel Mount Front	Red	55 °C	-20 C	48 V	2 A	No Marking	50000 Cycles	LED Red	SPDT	Button Full Guard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
