1785/34 100

Active

CBL RIBN 34COND TWIST-PAIR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

1785/34 100

Active

CBL RIBN 34COND TWIST-PAIR

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1785/34 100	1785 Series

Cable Type	Flat Twisted Pair, Flat Jacket	Flat Twisted Pair, Flat Jacket
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	-	Splice Free
Insulation Resistance	1 GOhms	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Black	Black
Length	-	7.62 - 60.96 m
Length	-	25 - 200 ft
Length [x]	100 ft	10 - 100 ft
Length [x]	30.48 m	3.05 - 30.48 m
Number of Conductors	34	10 - 64
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 2912	UL Style 2912
Ribbon Thickness	3.05 mm	3.05 mm
Ribbon Thickness	0.12 in	0.12 in
Ribbon Width	1.83 in	1.43 - 3.38 in
Ribbon Width	46.48 mm	28.7 - 85.85 mm
Ribbon Width	-	1.13 - 3.13 in
Ribbon Width	-	66.8 mm
Ribbon Width	-	0.63 in
Ribbon Width	-	16 mm
Shielding	Shielded	Shielded
Voltage	150 V	150 V
Wire Gauge	28 AWG	28 AWG

1785 Series

80001258435 1785/34BP=34/CAB/RC/FLJKSHDTPMT/(9.0,1.5)/28AWG/.050/CL2/100

Part	Voltage	Ribbon Thickness	Ribbon Thickness	Cable Type	Conductor Material	Length [x]	Length [x]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Insulation Resistance	Ribbon Width	Ribbon Width	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Jacket (Insulation) Material	Wire Gauge	Number of Conductors	Pitch [x]	Pitch [x]	Features	Length	Length	Ribbon Width [x]	Ribbon Width [x]
3M 1785/34BP	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm
3M 1785/60 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	10 ft, 100 ft	3.05 m, 30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms		79.5 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	60	0.05 in	1.27 mm	Splice Free	7.62 m, 15.24 m	25 ft, 50 ft	3.13 in
3M 1785/34 100	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm
3M 1785/50 200SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned			UL Style 2912	7	36 AWG	Black	1 GOhms			-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	50	0.05 in	1.27 mm	Splice Free	60.96 m	200 '	2.63 in	66.8 mm
3M 1785/34 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	10 ft, 100 ft	3.05 m, 30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm	Splice Free	7.62 m, 15.24 m	25 ft, 50 ft
3M 1785/16 100	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms			-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	16	0.05 in	1.27 mm
3M 1785/60 100	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms		79.5 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	60	0.05 in	1.27 mm				3.13 in
3M 1785/50 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms			-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	50	0.05 in	1.27 mm	Splice Free	15.24 m	50 ft	2.63 in	66.8 mm
3M 1785/34TB	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm
3M 1785/36 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned			UL Style 2912	7	36 AWG	Black	1 GOhms		49.02 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	36	0.05 in	1.27 mm	Splice Free	15.24 m	50 ft	1.93 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	300	$ 5.77

Description

General part information

1785 Series

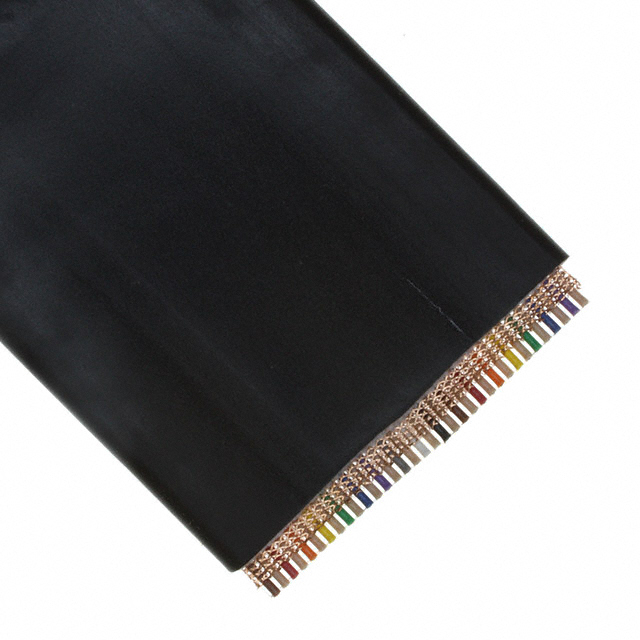

Flat Ribbon Cable Black 34 (17 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair, Flat Jacket 100.0' (30.48m)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet
