AWHW 10G-SMD

Active

Assmann WSW Components

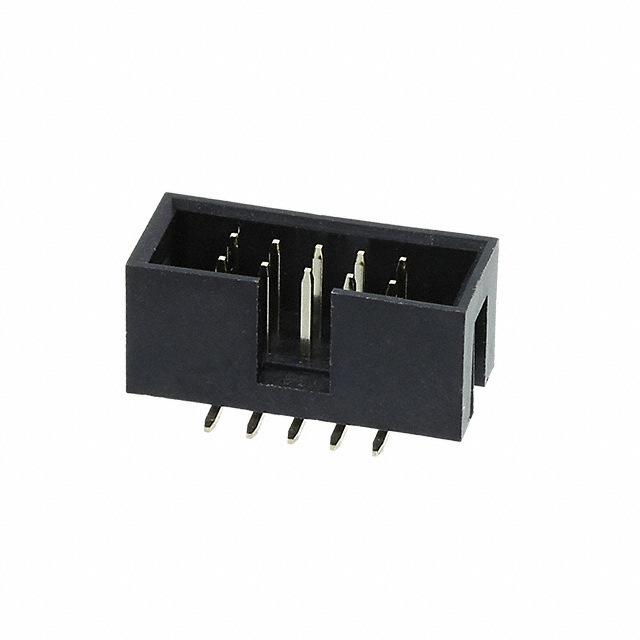

CONN HEADER SMD 10POS 2.54MM

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN HEADER SMD 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW 10G-SMD

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	5.9 mm
Contact Length - Mating	0.232 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Current Rating (Amps)	Contact Material	Contact Length - Mating	Contact Length - Mating	Termination	Mounting Type	Contact Finish - Mating	Insulation Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Contact Type	Insulation Material	Connector Type	Shrouding	Contact Shape	Style	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Features	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Assmann WSW Components AWHW 10G-SMD	0.1 in	2.54 mm	10	2.54 mm	0.1 in	UL94 V-0	3 A	Brass	5.9 mm	0.232 in	Solder	Surface Mount	Gold	Black	All	-40 °C	105 ░C	Push-Pull	2	Male Pin	Polyamide (PA9T) Nylon 9T Glass Filled	Header	Shrouded - 4 Wall	Square	Board to Cable/Wire	Flash	9 mm	0.354 in	Keying Slot Pick and Place
Assmann WSW Components AWHW10A-0202-T-R	0.1 in	2.54 mm	10	2.54 mm	0.1 in	UL94 V-0	3 A	Brass			Solder	Through Hole Right Angle	Gold	Gray	All	-40 °C	105 ░C	Push-Pull	2	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	Header	Shrouded - 4 Wall	Square	Board to Cable/Wire	Flash	8.94 mm	0.352 in	Keying Slot	Tin	0.224 in	5.7 mm	3.15 mm	0.124 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 10 position 0.100" (2.54mm)
