UC2637Q

Active

Unitrode

BRUSH DC MOTOR CONTROLLER, 0.5A,

Search across all available documentation for this part.

Active

Unitrode

BRUSH DC MOTOR CONTROLLER, 0.5A,

Technical Specifications

Parameters and characteristics for this part

Specification	UC2637Q

Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Mounting Type	Surface Mount
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-25 °C
Output Configuration	Pre-Driver - Half Bridge (4)

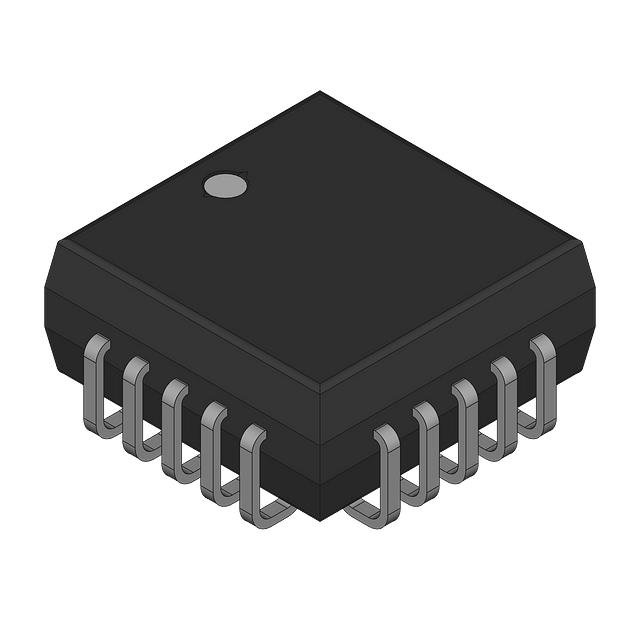

Package / Case	20-LCC (J-Lead)
Supplier Device Package	20-PLCC (9x9)
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	2.5 V

BRUSH DC MOTOR CONTROLLER, 0.5A,

Part	Function	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Mounting Type	Motor Type - AC, DC	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case
Unitrode UC2637Q	Controller - Commutation, Direction Management	Parallel	85 C	-25 °C	Pre-Driver - Half Bridge (4)	Surface Mount	Brushed DC	General Purpose	2.5 V	20 V	20-PLCC (9x9)	20-LCC (J-Lead)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	56	$ 5.58

General part information

Motor Driver Parallel 20-PLCC (9x9)
