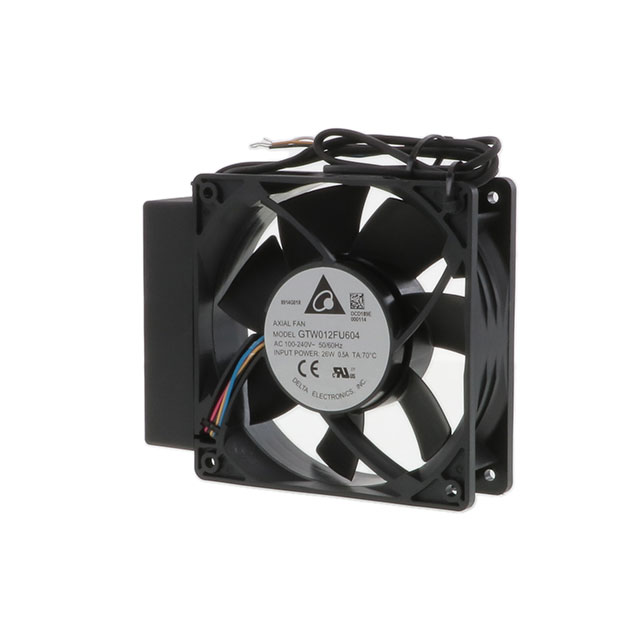

GTW012FU604

Active

Delta Electronics

120X145X38MM 100 / 240V AC FAN W

Search across all available documentation for this part.

Active

Delta Electronics

120X145X38MM 100 / 240V AC FAN W

Technical Specifications

Parameters and characteristics for this part

Specification	GTW012FU604

Air Flow	5.15 m³/min
Air Flow	184 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Electronic Commutation (EC), Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	18 W
RPM	4100 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	209.2 Pa
Static Pressure	0.84 in H2O
Termination	5 Wire Leads
Voltage - Rated	230 VAC
Voltage Range [Max]	240 VAC
Voltage Range [Min]	100 VAC
Width [y]	38 mm

Part	Lifetime @ Temp.	Voltage - Rated	Air Flow	Air Flow	Power (Watts)	Ingress Protection	RPM	Material - Frame	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Bearing Type	Features	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Termination
Delta Electronics GTW012FU604	70000 Hrs	230 VAC	5.15 m³/min	184 CFM	18 W	IP54 - Dust Protected Water Resistant	4100 RPM	Plastic	Tubeaxial	120 mm	120 mm	38 mm	209.2 Pa	0.84 in H2O	-20 °C	70 °C	-20 C	70 °C	55.5 dB	Ball	Electronic Commutation (EC) Locked Rotor Protection PWM Control Speed Sensor (Tach)	240 VAC	100 VAC	Plastic	5 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 120mm L x 120mm H Ball 184.0 CFM (5.15m³/min) 5 Wire Leads
