SL8801/12-10DA5-00
Active3M

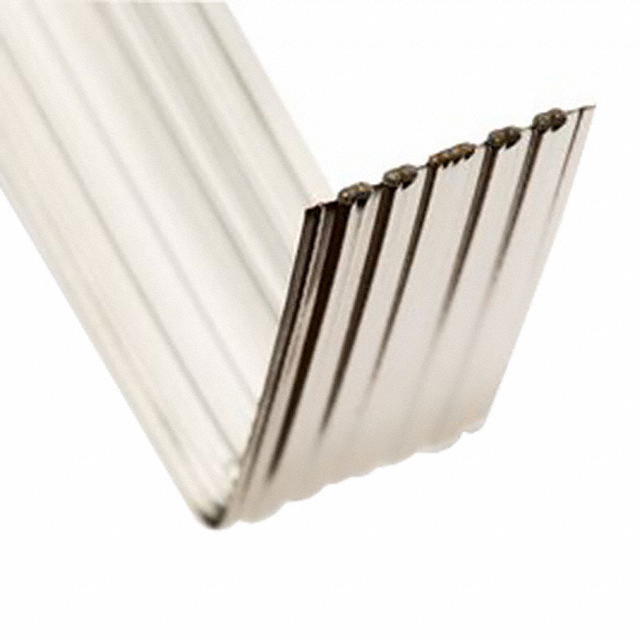

RIBBON CABLE, TWINAXIAL PAIRED FLEX FLAT, SHIELDED, 12 CONDUCTOR, 30 AWG, 500 FT, 152.4 M
Deep-Dive with AI
Search across all available documentation for this part.
SL8801/12-10DA5-00
Active3M
RIBBON CABLE, TWINAXIAL PAIRED FLEX FLAT, SHIELDED, 12 CONDUCTOR, 30 AWG, 500 FT, 152.4 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SL8801/12-10DA5-00 | SL8801 Series |
|---|---|---|
| Cable Type | Flat Twin Axial | Flat Twin Axial |
| Conductor Material | Copper, Silver Coated | Copper, Silver Coated, Copper, Tinned |
| Conductor Strand | Solid | Solid |
| Features | Reversed, Opposite, Down, Straight | Reversed, Opposite, Down, Straight |
| Insulation Resistance | 1 GOhms | 1 GOhms |
| Jacket (Insulation) Material | Polyolefin (PO) | Polyolefin (PO) |
| Jacket Color | Silver | Silver |
| Length | 76.2 m, 203.2 mm, 254 mm, 304.8 mm, 152.4 mm, 228.6 mm, 177.7 mm | 7.62 - 304.8 m |
| Length | 3000 ", 0.667 ft, 0.833 ft, 1 ft, 0.75 ft, 0.583 ft | 0.583 - 6000 " |
| Length | 8 in, 10 in, 6 ", 9 in, 7 in | 6 - 10 in |
| Length | 0.5 ' | 0.5 ' |
| Length [x] | 406.4 mm, 30.48 m, 355.62 mm, 279.4 mm | 3.05 - 406.4 mm |
| Length [x] | 1.33 ft, 100 ft, 1.17 ft, 0.917 ft | 0.917 - 100 ft |
| Length [x] | 11 " | 11 " |
| Number of Conductors | 8 | 8 - 10 |
| Operating Temperature | - | -20 C |
| Operating Temperature | - | 80 C |
| Pitch [x] | 2.37 mm | 2.37 - 2.4 mm |
| Pitch [x] | 0.093 in | 0.093 - 0.094 in |
| Ratings | UL E42769 | UL E42769 |
| Ribbon Thickness | 0.89 mm | 0.87 - 0.89 mm |
| Ribbon Thickness | 0.035 in | 0.034 - 0.035 in |
| Ribbon Width | - | 15.1 - 15.93 mm |
| Ribbon Width | - | 0.594 - 0.627 in |
| Ribbon Width [y] | 15.6 mm | 15.6 mm |
| Ribbon Width [y] | 0.614 in | 0.614 in |
| Shielding | Shielded | Shielded |
| Voltage | 150 V | 150 V |
| Wire Gauge | 30 AWG | 30 AWG |
SL8801 Series
RIBBON CABLE, TWINAXIAL PAIRED FLEX FLAT, SHIELDED, 12 CONDUCTOR, 30 AWG, 500 FT, 152.4 M
| Part | Number of Conductors | Length | Length | Length | Wire Gauge | Length [x] | Length [x] | Features | Ratings | Ribbon Thickness | Ribbon Thickness | Conductor Material | Voltage | Jacket (Insulation) Material | Ribbon Width [y] | Ribbon Width [y] | Cable Type | Pitch [x] | Pitch [x] | Jacket Color | Length | Conductor Strand | Length [x] | Insulation Resistance | Shielding | Ribbon Width | Ribbon Width | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8 | 76.2 m, 152.4 mm, 177.7 mm, 203.2 mm, 228.6 mm, 254 mm, 304.8 mm | 0.583 ft, 0.667 ft, 0.75 ft, 0.833 ft, 1 ft, 3000 " | 6 ", 7 in, 8 in, 9 in, 10 in | 30 AWG | 30.48 m, 279.4 mm, 355.62 mm, 406.4 mm | 0.917 ft, 1.17 ft, 1.33 ft, 100 ft | Down, Opposite, Reversed, Straight | UL E42769 | 0.89 mm | 0.035 in | Copper, Silver Coated | 150 V | Polyolefin (PO) | 15.6 mm | 0.614 in | Flat Twin Axial | 2.37 mm | 0.093 in | Silver | 0.5 ' | Solid | 11 " | 1 GOhms | Shielded | |||||
8 | 7.62 m, 15.24 m, 76.2 m, 152.4 m | 25 ft, 50 ft, 3000 ", 6000 in | 30 AWG | UL E42769 | 0.89 mm | 0.035 in | Copper, Silver Coated | 150 V | Polyolefin (PO) | Flat Twin Axial | 2.37 mm | 0.093 in | Silver | Solid | 1 GOhms | Shielded | 15.93 mm | 0.627 in | |||||||||||
8 | 15.24 m, 76.2 m, 152.4 mm, 177.7 mm, 203.2 mm, 228.6 mm, 254 mm, 304.8 mm | 0.583 ft, 0.667 ft, 0.75 ft, 0.833 ft, 1 ft, 50 ft, 3000 " | 6 ", 7 in, 8 in, 9 in, 10 in | 30 AWG | 3.05 m, 30.48 m, 279.4 mm, 355.62 mm, 406.4 mm | 0.917 ft, 1.17 ft, 1.33 ft, 10 ft, 100 ft | Down, Opposite, Reversed, Straight | UL E42769 | 0.89 mm | 0.035 in | Copper, Tinned | 150 V | Polyolefin (PO) | Flat Twin Axial | 2.37 mm | 0.093 in | Silver | 0.5 ' | Solid | 11 " | 1 GOhms | Shielded | 15.93 mm | 0.627 in | |||||
10 | 91.44 m | 300 ft | 30 AWG | 0.87 mm | 0.034 in | Copper, Tinned | 150 V | Polyolefin (PO) | Flat Twin Axial | 2.4 mm | 0.094 in | Silver | Solid | 1 GOhms | Shielded | 15.1 mm | 0.594 in | -20 C | 80 C |
