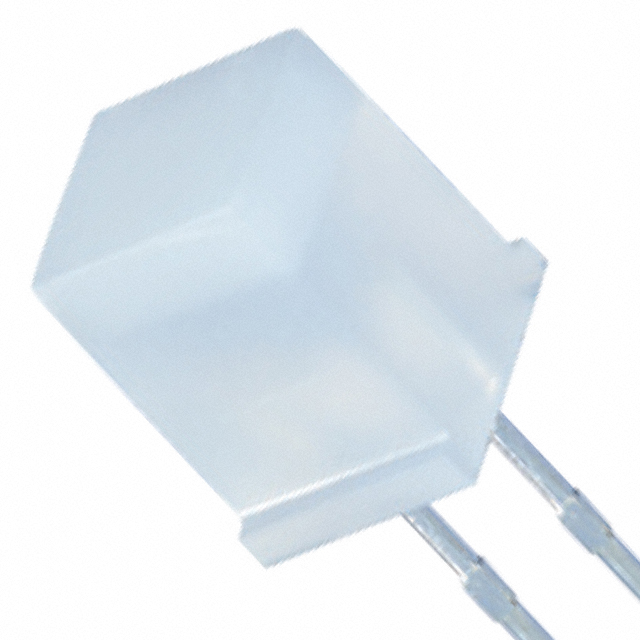

XSVG23MB
ActiveSunLED
LED GREEN DIFF ICE CUBE LED T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XSVG23MB
ActiveSunLED
LED GREEN DIFF ICE CUBE LED T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XSVG23MB |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 7.2 mm |
| Lens Color | White |
| Lens Size | 5 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 15 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | ICE CUBE LED |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XSVG23 Series
Green 570nm LED Indication - Discrete 2.1V Radial
