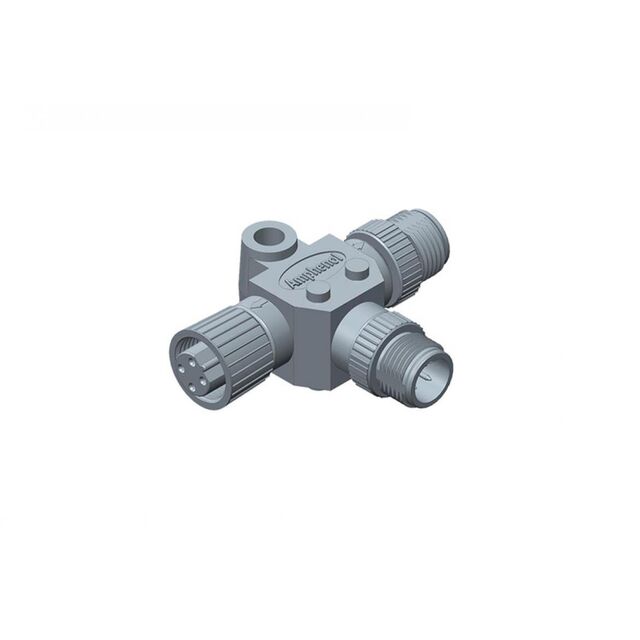

PS-050505-MFM-TS001

Active

Amphenol LTW

CONN T-ADPT 5P-5/5P M-F/M INLINE

Search across all available documentation for this part.

Active

Amphenol LTW

CONN T-ADPT 5P-5/5P M-F/M INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	PS-050505-MFM-TS001

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets (1), Male Pins (1)
Current Rating (Amps)	4 A
Features	Coupling Nut
Housing Color	Black
Housing Material	Polyurethane
Housing Material	PUR
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12

Part	Features	Mounting Type	Housing Material	Housing Material	Convert To (Adapter End)	Number of Positions (Convert From)	Convert From (Adapter End)	Housing Color	Number of Positions (Convert To)	Number of Positions (Convert To)	Ingress Protection	Orientation (Convert From)	Orientation (Convert To)	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert From)	Connector Style	Current Rating (Amps)
Amphenol LTW PS-050505-FFF-TS001	Coupling Nut	Free Hanging (In-Line)	Polyurethane	PUR	Female Sockets (2)	5	Female Sockets	Black	5	2	IP68 - Dust Tight Waterproof	Keyed	Keyed	M12	M12	Distributor T-Shaped
Amphenol LTW PS-050505-MFM-TS001	Coupling Nut	Free Hanging (In-Line)	Polyurethane	PUR	Female Sockets (1) Male Pins (1)	5	Male Pins	Black	5	2	IP68 - Dust Tight Waterproof	Keyed	Keyed	M12	M12	Distributor T-Shaped	4 A
Amphenol LTW PS-050505-MFF-TS001	Coupling Nut	Free Hanging (In-Line)	Polyurethane	PUR	Female Sockets (2)	5	Male Pins	Black	5	2	IP68 - Dust Tight Waterproof	Keyed	Keyed	M12	M12	Distributor T-Shaped	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor T-Shaped 5/5 (2) Male Pins/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
