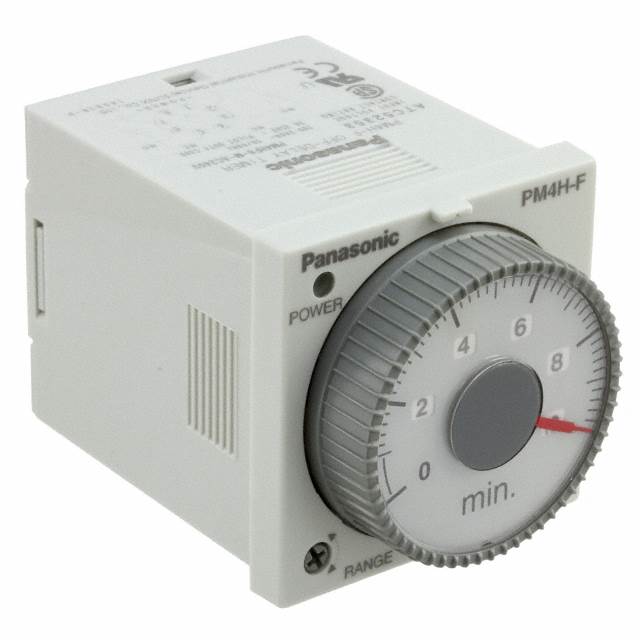

PM4HF8-M-AC240V

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 10MIN 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

PM4HF8-M-AC240V

Obsolete

Panasonic Industrial Automation Sales

RELAY TIME DELAY 10MIN 3A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM4HF8-M-AC240V

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 3 A
Delay Time [Max]	10 Min
Delay Time [Min]	0.04 Min
Function	Off-Delay
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	200 VAC

PM4HF Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Mounting Type	Termination Style	Circuit	Relay Type	Function	Contact Rating @ Voltage	Timing Adjustment Method	Voltage - Supply
Panasonic Industrial Automation Sales PM4HF8-M-AC240V	200 VAC	240 VAC	Input Voltage	0.04 Min	10 Min	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial
Panasonic Industrial Automation Sales PM4HF8-S-AC240VW	200 VAC	240 VAC	Input Voltage	0.04 Min	10 Min	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial
Panasonic Industrial Automation Sales PM4HF8-S-AC120V	100 VAC	120 VAC	Input Voltage	0.04 Sec	10 s	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial
Panasonic Industrial Automation Sales PM4HF8-M-DC24V			Input Voltage	0.04 Min	10 Min	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial	24 VDC
Panasonic Industrial Automation Sales PM4HF8-M-DC24VW			Input Voltage	1 Min	10 Min	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial	24 VDC
Panasonic Industrial Automation Sales PM4HF8-S-DC24VW			Input Voltage	1 Sec	10 s	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial	24 VDC
Panasonic Industrial Automation Sales PM4HF8-M-AC120VW	100 VAC	120 VAC	Input Voltage	1 Min	10 Min	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial
Panasonic Industrial Automation Sales PM4HF8-M-AC120V	100 VAC	120 VAC	Input Voltage	0.04 Min	10 Min	Socketable	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Mechanical Relay	Off-Delay	3 A 250 VAC	Hand Dial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PM4HF Series

Off-Delay Time Delay Relay DPDT (2 Form C) 0.04 Min ~ 10 Min Delay 3A @ 250VAC Socketable

Documents

Technical documentation and resources

No documents available
