796695-7

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 7POS 90DEG 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

796695-7

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 7POS 90DEG 3.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 1.99

Description

General part information

796695 Series

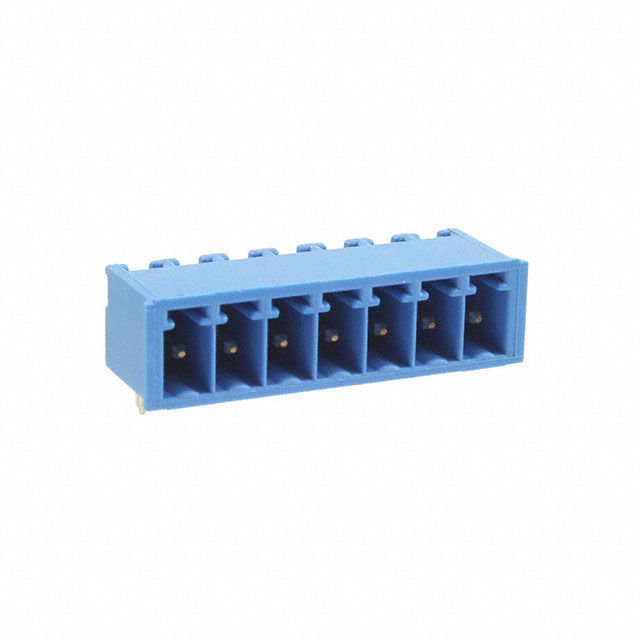

7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796695-7	796695 Series

Color	Blue	Blue
Contact Material	Brass	Brass
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.4 mm	3.4 mm
Contact Tail Length	0.134 in	0.134 in
Current - UL	11 A	11 A
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	0.285 in	0.285 in
Insulation Height	7.25 mm	7.25 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	7	2 - 13
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Positions Per Level	7	2 - 13
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

796695 Series

TERM BLOCK HDR 4POS 90DEG 3.5MM

Part	Contact Mating Finish	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Termination Style	Number of Positions	Number of Levels	Insulation Height	Insulation Height	Voltage - UL	Positions Per Level	Current - UL	Type	Header Orientation	Pitch [x]	Pitch [x]	Mounting Type
TE Connectivity AMP Connectors 796695-4	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder	4	1	0.285 in	7.25 mm	300 V	4	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
TE Connectivity AMP Connectors 1-796695-2	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder	12	1	0.285 in	7.25 mm	300 V	12	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
TE Connectivity AMP Connectors 796695-3	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder		1	0.285 in	7.25 mm	300 V	3	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
TE Connectivity AMP Connectors 796695-2	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder	2	1	0.285 in	7.25 mm	300 V	2	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
TE Connectivity AMP Connectors 796695-7	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder	7	1	0.285 in	7.25 mm	300 V	7	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
TE Connectivity AMP Connectors 1-796695-1	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder	11	1	0.285 in	7.25 mm	300 V	11	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
TE Connectivity AMP Connectors 1-796695-3	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder	13	1	0.285 in	7.25 mm	300 V	13	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
TE Connectivity AMP Connectors 796695-8	Tin	Brass	Blue	-40 °C	110 °C	3.4 mm	0.134 in	UL94 V-0	Solder	8	1	0.285 in	7.25 mm	300 V	8	11 A	Header, Male Pins, Shrouded (4 Side)	90°, Right Angle	3.5 mm	0.138 in	Through Hole
