Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IDB010V1 |
|---|---|
| For Use With/Related Products | BlueNRG-LP |
| Supplied Contents | Board(s) |
| Type | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 87.50 | |
Description
General part information
STEVAL-IDB010V1 Series

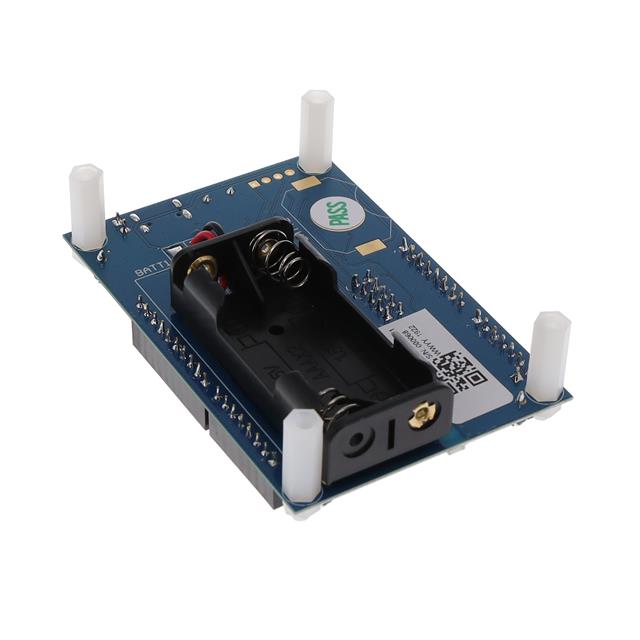

The STEVAL-IDB010V1 evaluation platform is designed to help you develop and test Bluetooth®Low Energy applications using the low power BlueNRG-LP system-on-chip, with inertial and environmental MEMS sensors, a digital MEMS microphone, various interface buttons, and LEDs.
The BlueNRG-LP features a 64 MHz, 32-bit Arm Cortex®-M0+ core, 256 kB programmable flash memory, 64 kB SRAM, MPU, and an extensive peripheral set (6x PWM, 2x I²C, 2x SPI/I2S, SPI, USART, UART, PDM, 12-bit ADC SAR). It is compliant with the Bluetooth®Low Energy specification. It supports master, slave, and simultaneous master-and-slave roles, data length extension, 2 Mbps, long range, extended advertising and scanning, channel selection algorithm #2, GATT caching, Bluetooth®Low Energy ping procedure, Bluetooth®Low Energy power control, and path loss monitoring.
Serial communication with a PC and three power options (USB only, battery only, and external power supply) allow developing complex applications and testing flexibility.
