796682-2
ActiveTE Connectivity AMP Connectors

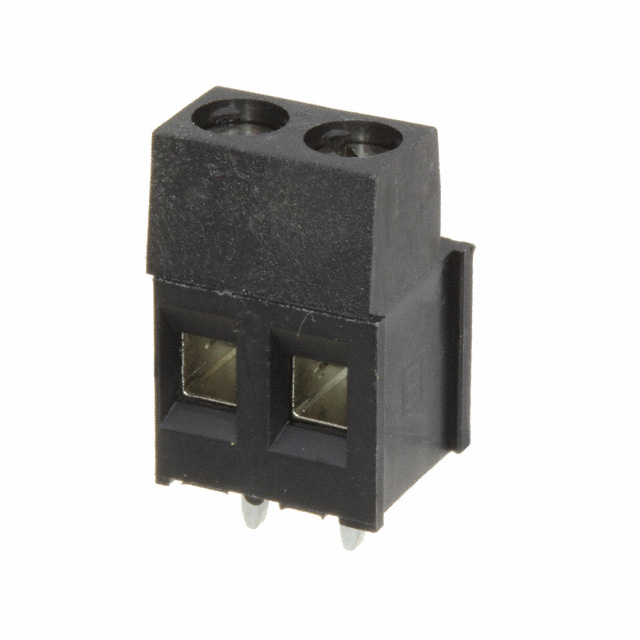

TERM BLK 2POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796682-2
ActiveTE Connectivity AMP Connectors
TERM BLK 2POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796682-2 | 796682 Series |
|---|---|---|
| Clamp Material - Plating | Brass - Nickel Plated | Brass - Nickel Plated |
| Color | Black | Black |
| Contact Material - Plating [custom] | Brass - Tin Plated | Brass - Tin Plated |
| Current | 17.5 A | 17.5 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Positions Per Level | 2 | 2 - 23 |
| Screw Material - Plating | Brass - Nickel Plated | Brass - Nickel Plated |
| Screw Thread | M3 | M3 |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
796682 Series
TERM BLK 7POS SIDE ENTRY 5MM PCB
| Part | Number of Levels | Mounting Type | Pitch [x] | Pitch [x] | Positions Per Level | Torque - Screw | Torque - Screw | Features | Wire Gauge [Max] | Wire Gauge [Min] | Screw Thread | Voltage | Color | Wire Termination | Screw Material - Plating | Mating Orientation | Contact Material - Plating [custom] | Clamp Material - Plating | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796682-7 | 1 | Through Hole | 5 mm | 0.197 in | 7 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 1-796682-0 | 1 | Through Hole | 5 mm | 0.197 in | 10 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 796682-6 | 1 | Through Hole | 5 mm | 0.197 in | 6 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 1-796682-9 | 1 | Through Hole | 5 mm | 0.197 in | 19 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 1-796682-1 | 1 | Through Hole | 5 mm | 0.197 in | 11 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 2-796682-0 | 1 | Through Hole | 5 mm | 0.197 in | 20 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 796682-2 | 1 | Through Hole | 5 mm | 0.197 in | 2 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 796682-5 | 1 | Through Hole | 5 mm | 0.197 in | 5 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 796682-3 | 1 | Through Hole | 5 mm | 0.197 in | 3 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
TE Connectivity AMP Connectors 2-796682-1 | 1 | Through Hole | 5 mm | 0.197 in | 21 | 0.79 Nm | 7 Lb-In | Interlocking (Side) | 30 AWG | 12 AWG | M3 | 300 V | Black | Screw - Rising Cage Clamp | Brass - Nickel Plated | Horizontal with Board | Brass - Tin Plated | Brass - Nickel Plated | 17.5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.45 | |
| 10 | $ 1.05 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.75 | |||
| 300 | $ 0.66 | |||
| 600 | $ 0.61 | |||
| 1200 | $ 0.58 | |||
| 5100 | $ 0.52 | |||
Description
General part information
796682 Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
