1-796682-1

Active

TE Connectivity AMP Connectors

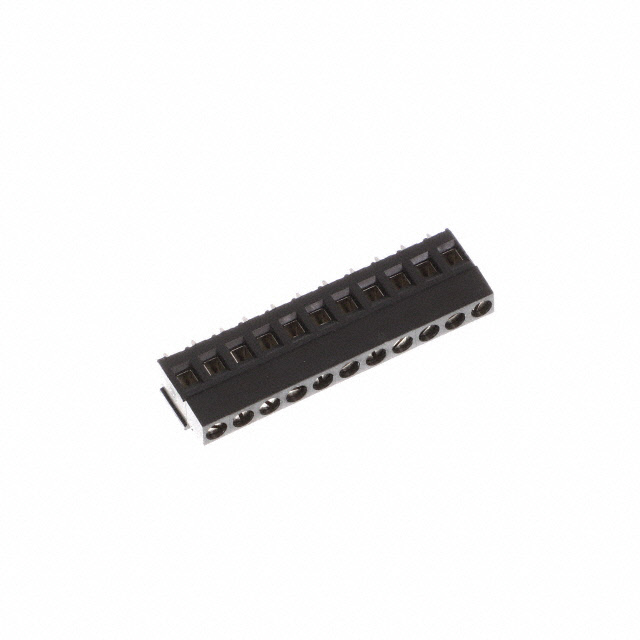

TERM BLK 11P SIDE ENTRY 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-796682-1	796682 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Black	Black
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	11	2 - 23
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

796682 Series

TERM BLK 7POS SIDE ENTRY 5MM PCB

Part	Number of Levels	Mounting Type	Pitch [x]	Pitch [x]	Positions Per Level	Torque - Screw	Torque - Screw	Features	Wire Gauge [Max]	Wire Gauge [Min]	Screw Thread	Voltage	Color	Wire Termination	Screw Material - Plating	Mating Orientation	Contact Material - Plating [custom]	Clamp Material - Plating	Current
TE Connectivity AMP Connectors 796682-7	1	Through Hole	5 mm	0.197 in	7	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 1-796682-0	1	Through Hole	5 mm	0.197 in	10	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 796682-6	1	Through Hole	5 mm	0.197 in	6	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 1-796682-9	1	Through Hole	5 mm	0.197 in	19	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 1-796682-1	1	Through Hole	5 mm	0.197 in	11	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 2-796682-0	1	Through Hole	5 mm	0.197 in	20	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 796682-2	1	Through Hole	5 mm	0.197 in	2	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 796682-5	1	Through Hole	5 mm	0.197 in	5	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 796682-3	1	Through Hole	5 mm	0.197 in	3	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A
TE Connectivity AMP Connectors 2-796682-1	1	Through Hole	5 mm	0.197 in	21	0.79 Nm	7 Lb-In	Interlocking (Side)	30 AWG	12 AWG	M3	300 V	Black	Screw - Rising Cage Clamp	Brass - Nickel Plated	Horizontal with Board	Brass - Tin Plated	Brass - Nickel Plated	17.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.13
		10	$ 3.62
		25	$ 3.52
		50	$ 3.44
		100	$ 3.33

Description

General part information

796682 Series

11 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
