BUTT SPLICE, RED, PIDG SERIES, 22 AWG, 16 AWG, 1.65 MM², NYLON (POLYAMIDE)

Find alt

Alpha

320559

Active

TE Connectivity AMP Connectors

BUTT SPLICE, RED, PIDG SERIES, 22 AWG, 16 AWG, 1.65 MM², NYLON (POLYAMIDE)

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

3205 Series

The 320559 is a red serrated insulated Butt Splice with of tin-plated copper contact. The splice has nylon insulation and accepts 22 to 16AWG wire size.

Technical Specifications

Parameters and characteristics for this part

Specification	320559

Color	Red
Features	Serrated Mating Area
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Inline, Individual Openings, Butt Splice
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

3205 Series

Part	Termination	Stud/Tab Size	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Material	Terminal Type	Insulation	Features	Thickness	Mounting Type	Length - Overall	Color	Contact Finish	Width - Outer Edges	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Number of Wire Entries	Stud/Tab Size	Length - Ring Center to Termination	Tongue Inside Opening	Length - Termination	Stud/Tab Size (Type)

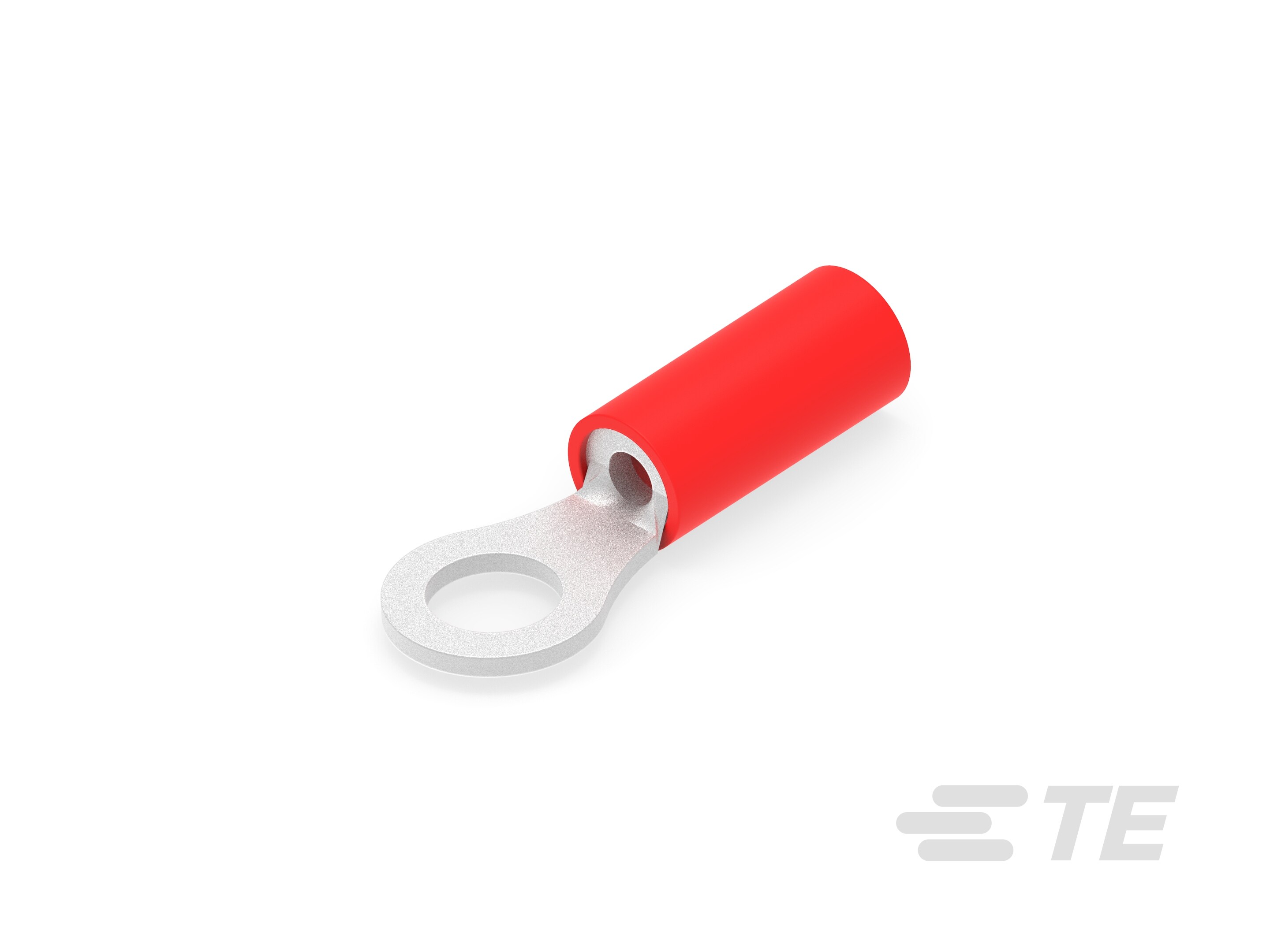

TE Connectivity AMP Connectors 320554	Crimp	8 Stud	16 AWG	22 AWG	Copper	Circular	Insulated	Serrated Termination	0.031 in	Free Hanging (In-Line)	0.797 in	Red	Tin	0.281 in	Nylon PA Polyamide	0.08 in	0.125 in
TE Connectivity AMP Connectors 320562	Crimp		14 AWG	16 AWG		Butt Splice Individual Openings Inline	Fully Insulated	Serrated Mating Area				Blue						2
TE Connectivity AMP Connectors 320569	Crimp	0.25 Stud	10 AWG	12 AWG	Copper	Circular	Insulated	Serrated Termination	0.04 in	Free Hanging (In-Line)	1.322 in	Yellow	Tin	0.531 in	Nylon PA Polyamide	0.15 in	0.23 in
TE Connectivity AMP Connectors 320573	Crimp	0.375 in	16 AWG	22 AWG	Copper	Circular	Insulated	Serrated Termination	0.031 in	Free Hanging (In-Line)	1.218 in	Red	Tin	0.531 in	Nylon PA Polyamide	0.08 in	0.125 in		3 Stud 8 Stud
TE Connectivity AMP Connectors 32050	Crimp	8 Stud	16 AWG	22 AWG	Copper	Standard	Insulated	Serrated Termination		Free Hanging (In-Line)	0.908 in	Red	Tin	0.375 in	Nylon PA Polyamide	0.08 in	0.125 in			0.312 in	0.171 in	0.404 in

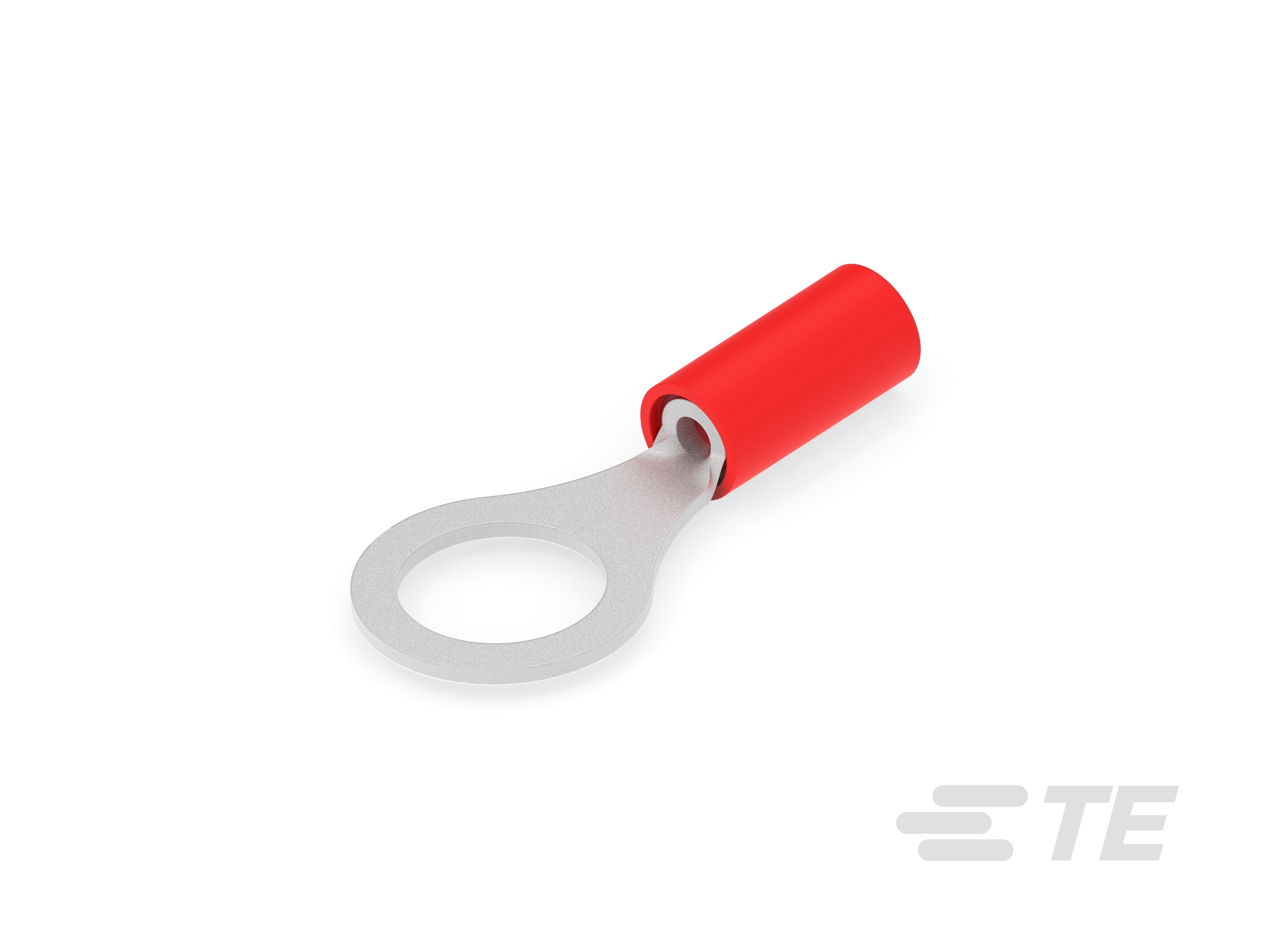

TE Connectivity AMP Connectors 320572	Crimp	0.3125 in	16 AWG	22 AWG	Copper	Circular	Insulated	Serrated Termination	0.031 in	Free Hanging (In-Line)	1.078 in	Red	Tin	0.469 in	Nylon PA Polyamide	0.08 in	0.125 in		16 Stud 5 Stud				Stud
TE Connectivity AMP Connectors 32053	Crimp	8 Stud	16 AWG	22 AWG	Copper	Standard	Insulated	Serrated Termination		Free Hanging (In-Line)	0.908 in	Red	Tin	0.375 in	Nylon PA Polyamide	0.105 in	0.14 in			0.312 in	0.171 in	0.404 in
TE Connectivity AMP Connectors 320559	Crimp		16 AWG	22 AWG		Butt Splice Individual Openings Inline	Fully Insulated	Serrated Mating Area				Red						2
TE Connectivity AMP Connectors 320560	Crimp	8 Stud	14 AWG	16 AWG	Copper	Circular	Insulated	Serrated Termination	0.031 in	Free Hanging (In-Line)	0.859 in	Blue	Tin	0.343 in	Nylon PA Polyamide	0.105 in	0.15 in

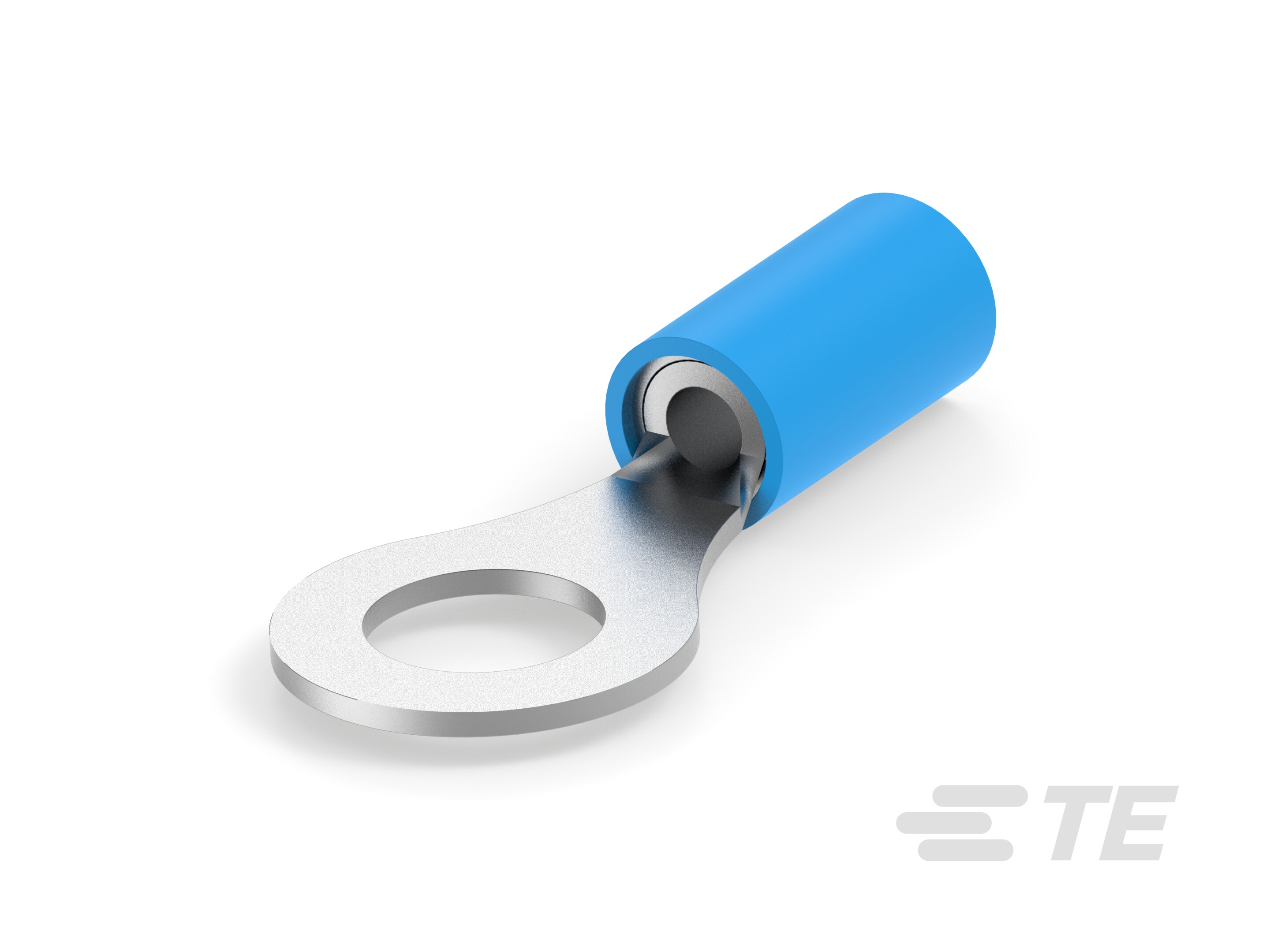

TE Connectivity AMP Connectors 320563	Crimp	0.25 Stud	14 AWG	16 AWG	Copper	Circular	Insulated	Serrated Termination	0.031 in	Free Hanging (In-Line)	1.078 in	Blue	Tin	0.469 in	Nylon PA Polyamide	0.105 in	0.15 in
